Model: EZL-TSTAT-US

Enjoy the ultimate in comfort, convenience, and energy efficiency

Introduction

Thank you for choosing the Ezlo Z-Wave Thermostat

You’ve taken the first step toward making your home smarter and safer.

We want setting up to be as easy as possible but if you’re finding yourself in need of help, our outstanding human customer care is for you through the following channels:

	Toll-free number 866 966 2272
	International number 702 487 9770
	support@ezlo.com
	support.ezlo.com

Important tips

Before pairing your new Ezlo Thermostat to your home
controller, set the parameters to adjust the
thermostat's behavior. See Menu description and
Z-Wave parameters sections | pages 24–28 and 34–39.

If your Ezlo Thermostat has already been paired with
your home controller and you want to change the
parameters, please note that an exclusion and pairing
again will be required to update the UI controls and
thermostat capabilities on your controller.

Getting Started

Pairing with a Z-Wave Hub

Follow these quick steps to get up and running.
Each step includes a reference to where you can find the full procedure in this manual.

Wiring Setup

Begin by removing your existing thermostat and connecting the Ezlo Thermostat according to your HVAC system type.

Turn off power to your HVAC system.
Label existing wires before disconnecting them.
Mount the Ezlo base plate and wire the unit as per your system (conventional or heat pump).
Follow wiring diagrams and terminal descriptions for your specific system.

Continue on page 10–22 for the full wiring
instructions.

Thermostat Configuration

After wiring, configure the thermostat through its interface:

Power up the device.
Use the Secret Menu to set your HVAC system type.
Adjust display, fan, schedule, and offset settings as needed.
Set your preferred temperature units and other preferences.

Continue on page 23–28 for full configuration details.

Connect the thermostat to your smart home
system:

Open your Z-Wave controller’s app (e.g., MiOS for Ezlo hubs).
Put the controller in inclusion mode.
On the thermostat, press and hold ▲+▼ for 3
seconds to access Z-Wave menu.
Press ⦾ to enter learning mode.

Continue on page 30–31 for complete pairing instructions.

Once you've completed these steps, you're ready to enjoy smart, efficient climate control with your Ezlo Thermostat.

Product Description

Enhance your home’s heating and cooling. Easily control temperature to your liking with the MiOS App, immediate response when you arrive home and save on energy costs. With Z-Wave connectivity and a user-friendly interface, managing your home’s temperature has never been easier. Upgrade to the Ezlo Thermostat and experience the perfect blend of comfort and technology.

Product Specifications

Power Supply	AC/DC 24V / 4*AAA dry battery (device will enter low power working state)
Application range	gas/fuel boiler, electric heating, water heating, heat pumps & more
Frameless Display	Tempered glass +PC+ABS
Self-Consumption	<1W
Resistive Load	＜1A
Temp. Setting Range	32°F to 99°F (0°C to 40°C)
Precision	0.1 °C (1 °F)
Control Type	HVAC
Wire Connection	Terminal
Dimension	113×113×19mm (4.45×4.45×0.75 inches)
Mounting	60.3mm (2.37 inches) hole pitch
Communication Protocol	Z-Wave 904.42 MHz with S2 encryption
Certifications	FCC

Features

Application range: gas/fuel boiler, electric heating, water heating, heat pump etc. 8 types control systems.
Z-Wave 800 series.
Touch button operation interaction.
Simpler way to connect wires without screw driver.
Built-in temperature sensor for ambient temperature reading.
Battery Powered: Easy installation without the need for hardwiring.

Package Contents

1x Thermostat
1x Back plate
4x Wall anchors
4x Wall mounting screws
2x Base plate securing screws

Required (not included)

Philips head screwdriver
Flat head screwdriver
4x AAA Batteries

Thermostat_on_the_wall_2 (3).png

Wiring Cautions/ Wiring Notes

Ezlo Thermostat Front Plate Removal / Disassembly

Installation Steps

Remove the old thermostat if you have an existing one

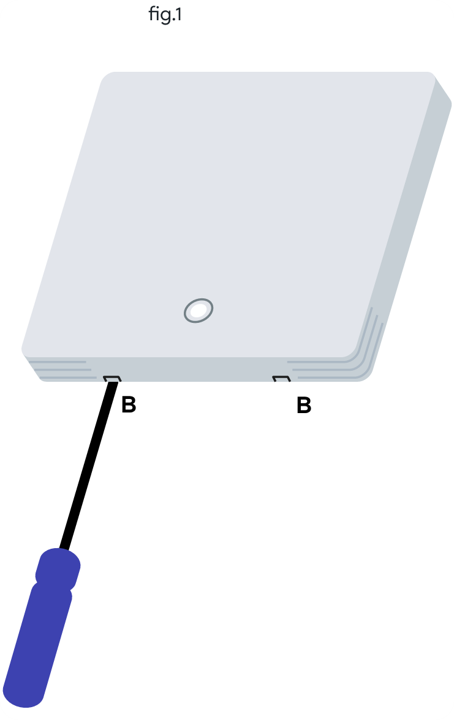

Dissasemble the front plate of the Ezlo Z-Wave Thermostat (fig.1)
Attach the base plate to the wall and pull the existing wiring through the base plate (fig.2)

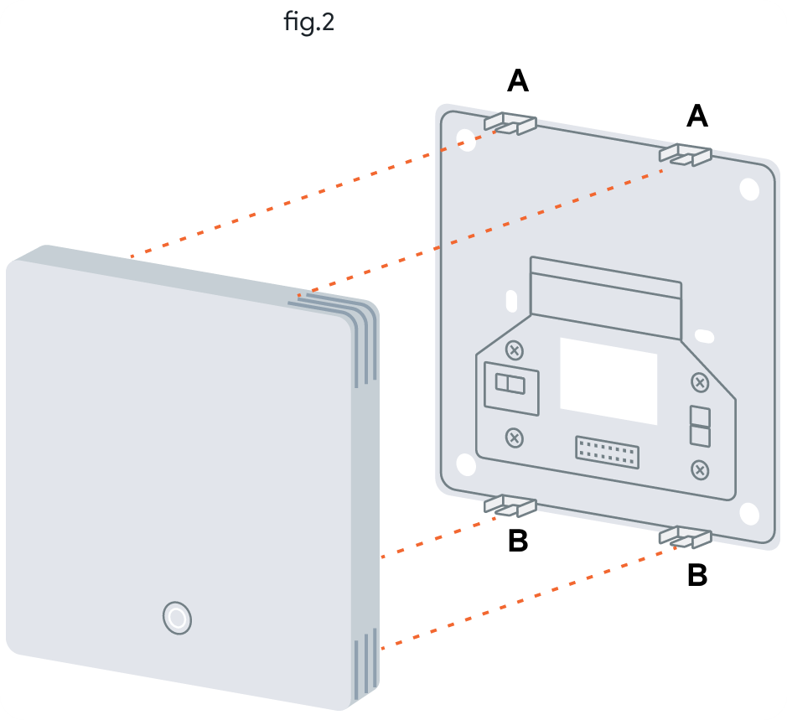

Re-attach the front plate to the back plate (fig.2)
Wire the Ezlo Z-Wave Thermostat for your specific HVAC system
Add the thermostat to your Z-Wave Network

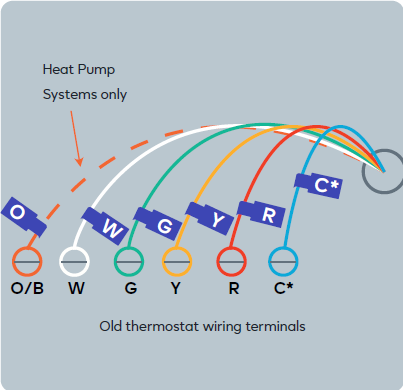

Removing the Existing Thermostat

Terminal	Typical Wire Color	Function
Y	Yellow	Cool
W	White	Heat
G	Green	Fan
R	Red	24VAC Return
C	Blue	24V Common (typically BLUE)

Wiring the Ezlo Z-Wave Thermostat for your specific HVAC system

		Terminals need to be wired						Wiring Diagram Reference
Item	Description	G	Y1	Y2	W1	W2	O/B	Wiring Diagram Reference
0	One-stage Conventional cool only							Fig.0
1	Two-stage Conventional cool only							Fig.1
2	One-stage Conventional heat only							Fig.2
3	One-stage Conventional heat only(no fan)							Fig.3
4	Two-stage Conventional heat only							Fig.4
5	One-stage Conventional heat & coo							Fig.5 Fig.5-2
6	Two-stage Conventional heat & cool							Fig.6 Fig.62
7	One-stage Cool in heat pump							Fig.7
8	Two-stage Cool in heat pump							Fig.8
9	One-stage heat in heat pump (optional: Aux)							Fig.7 Fig.9-2 Fig.9-3
10	Two-stage heat in heat pump (optional: Aux)							Fig.8 Fig.10-2 Fig.10-3
11	One-stage heat & cool in heat pump (optional: Aux)							Fig.11 Fig.11-2 Fig.11-3
12	Two-stage heat & cool in heat pump (optional: Aux)							Fig.12 Fig.12-2 Fig.12-3

Wiring Terminals Description

Terminal	Description
R (Red)	Power for heating--connect to secondary side of heating system transformer
RC	Power for cooling--connect to secondary side of cooling system transformer
C	Common wire from secondary side of cooling or heating system transformer
W	Heat relay (stage 1)
W2	Second stage heat relay or auxiliary heat relay
OB	Changeover valve for heat pump systems
Y	Compressor contactor (stage 1)
Y2	Compressor contactor (stage 2)
G	Fan relay
K	Wire with 4-5 module
NC

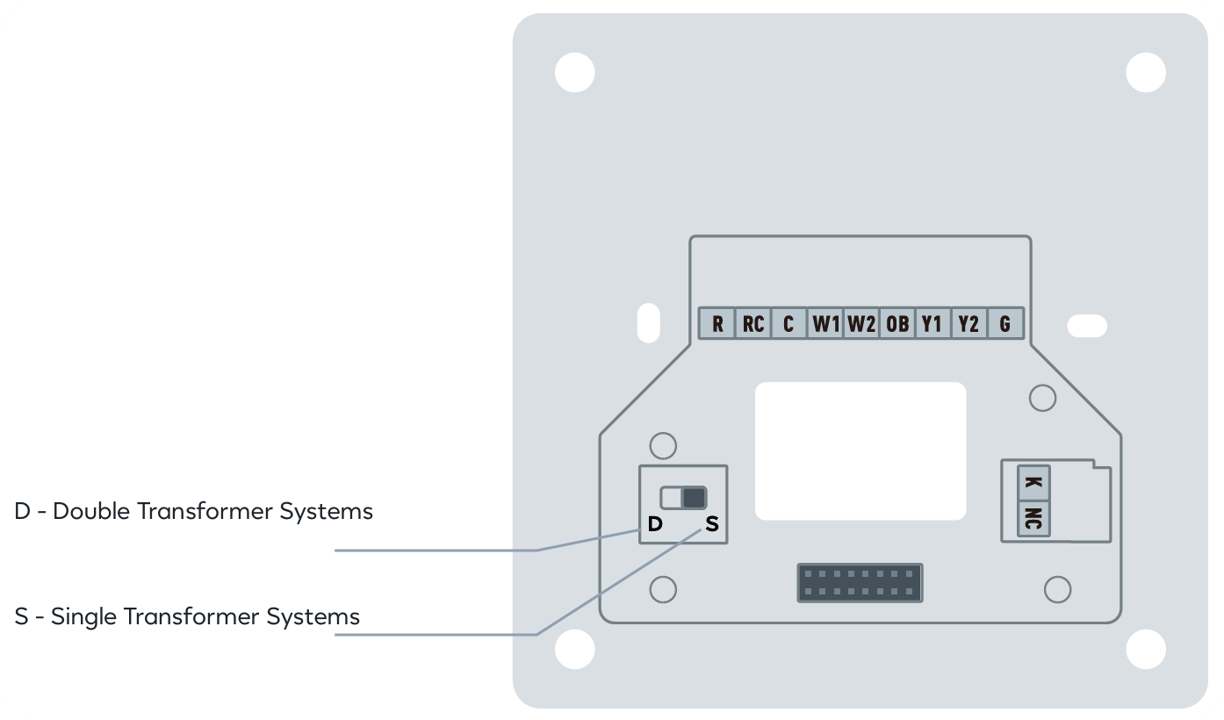

Wiring terminals.png

Installation Wiring For Conventional Systems

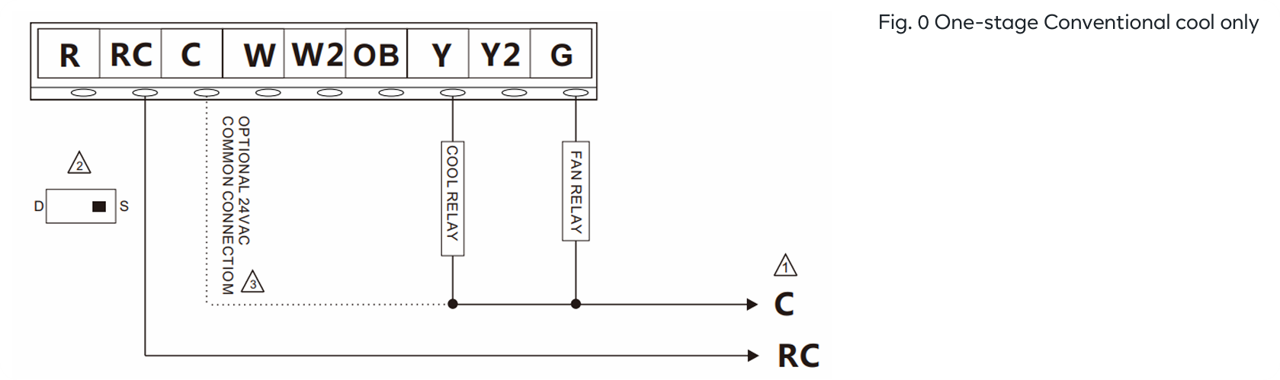

Installation Wiring For One-stage Conventional Cool Only

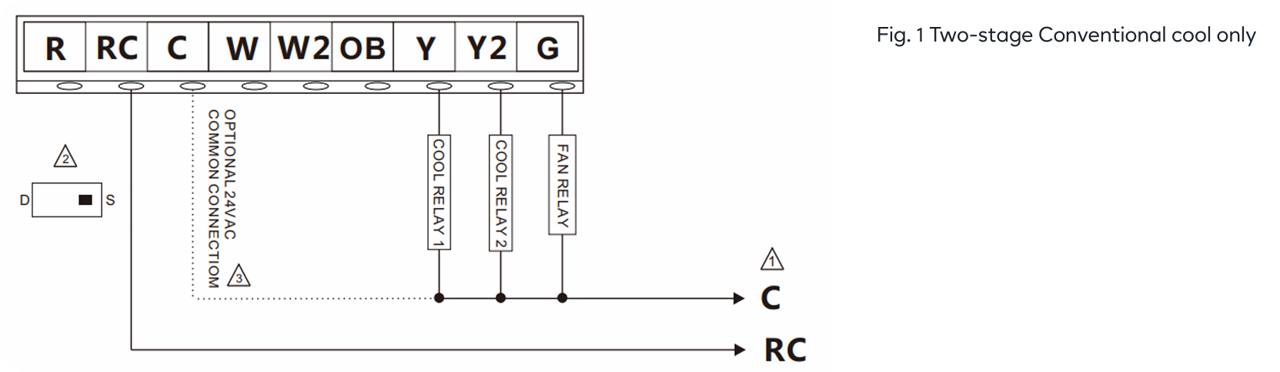

Installation Wiring For Two-stage Conventional Cool Only

Fig1 Two.png

Installation Wiring For One-Stage Conventional Heat Only

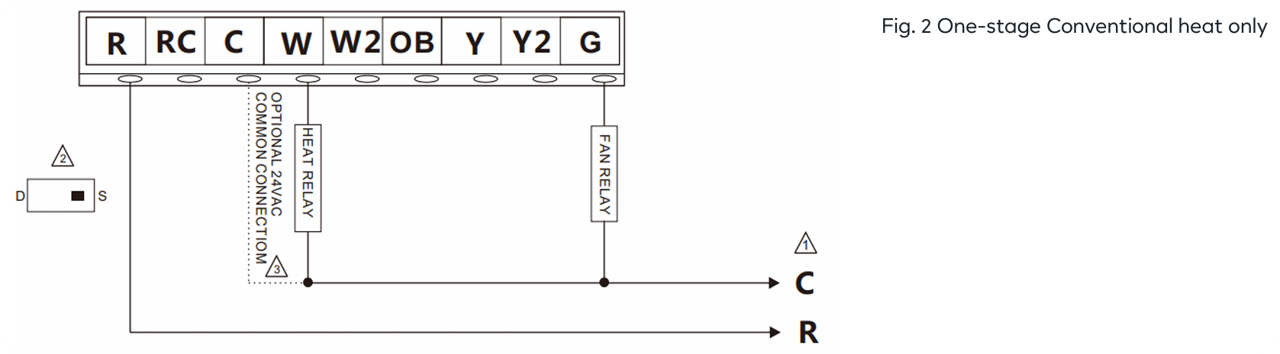

Fig2 One.png

Installation Wiring For One-stage Conventional Heat Only (no fan)

Installation Wiring For Two-stage Conventional Heat Only

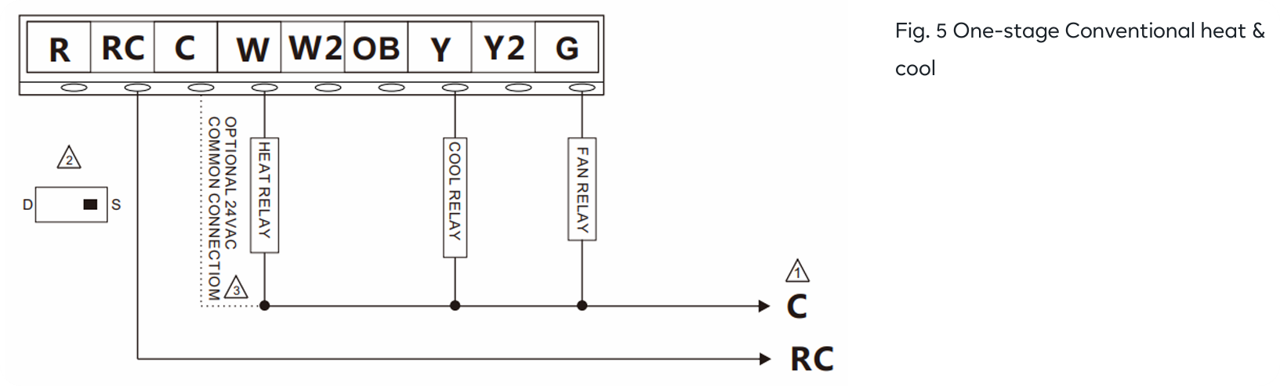

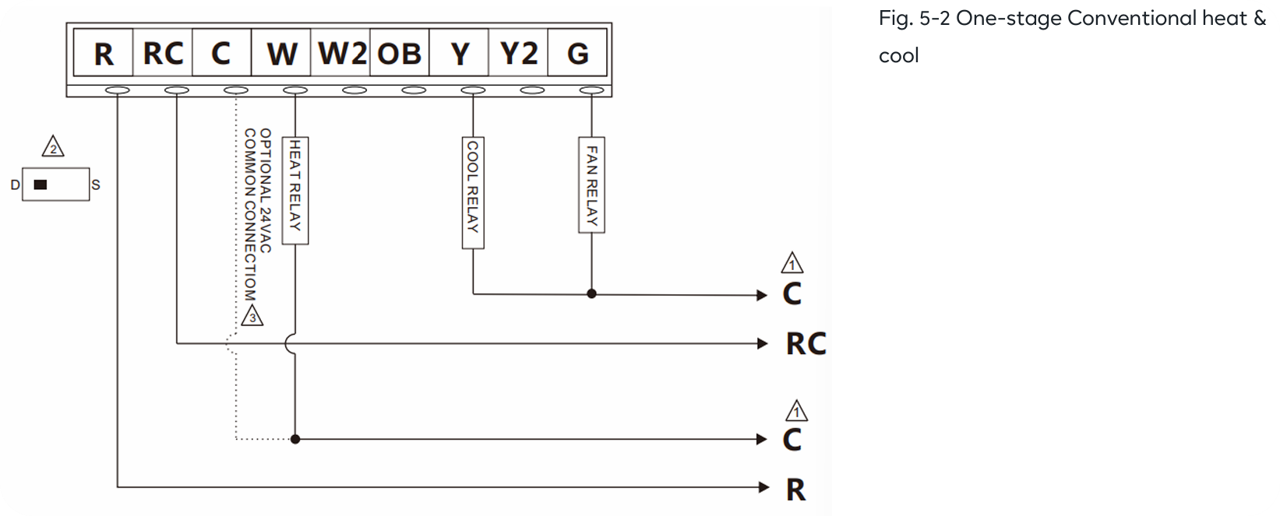

Installation Wiring For One-stage Conventional Heat & Cool (Single Transformer)

Installation Wiring For One-stage Conventional Heat & Cool (Double Transformer)

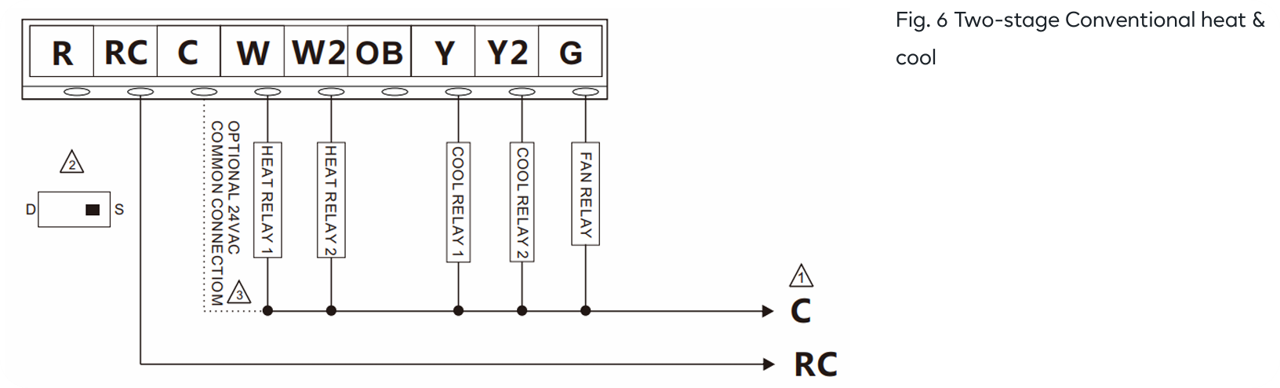

Installation Wiring For Two-stage Conventional Heat & Cool (Single Transformer)

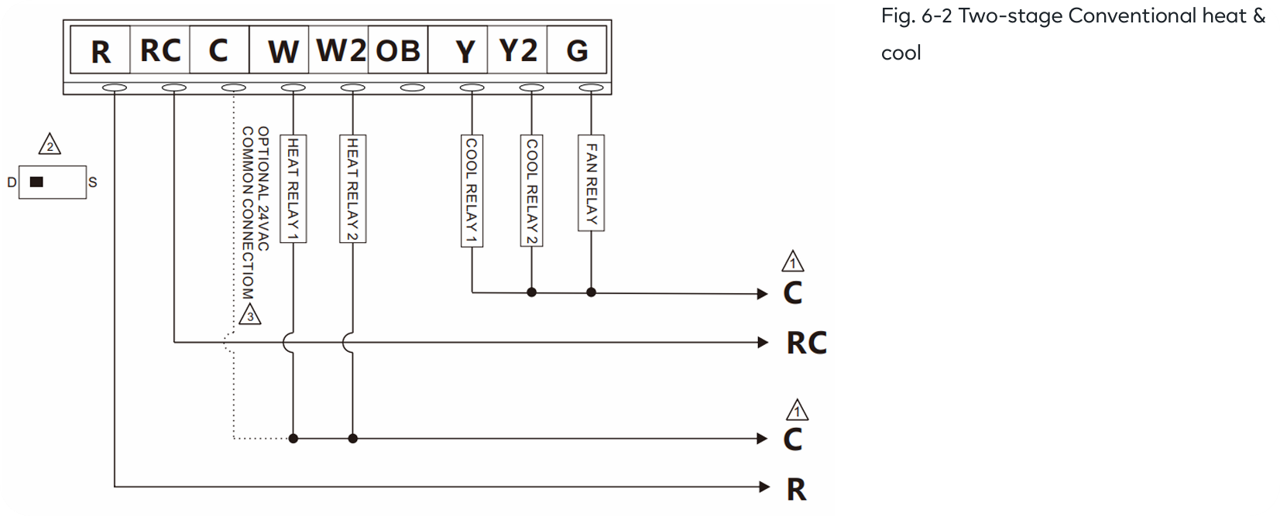

Installation Wiring For Two-stage Conventional Heat & Cool (Double Transformer)

Installation Wiring For Heat Pump Systems

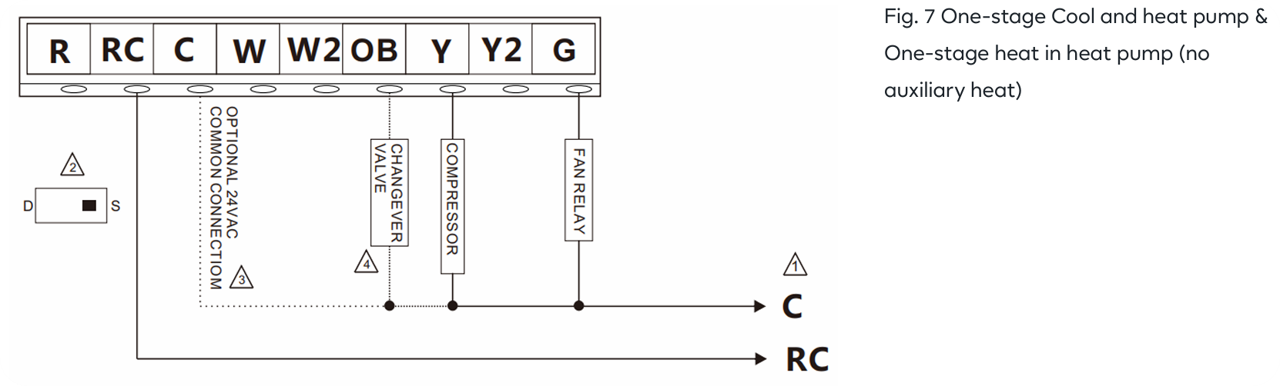

Installation Wiring for One-stage Cool in Heat Pump & One-Stage Heat in Heat Pump (no auxiliary heat)

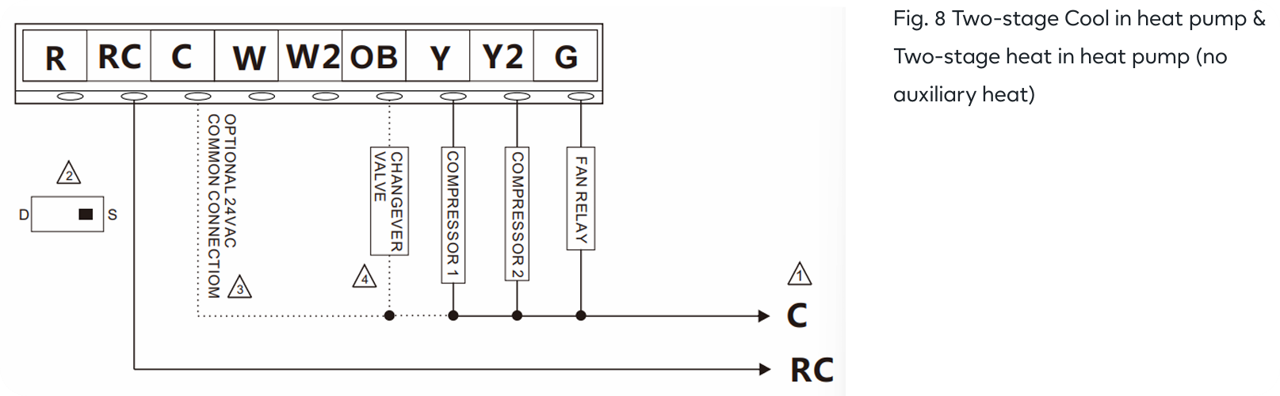

Installation Wiring for Two-Stage Cool in Heat Pump & Two-stage Heat in Heat Pump (no auxiliary heat)

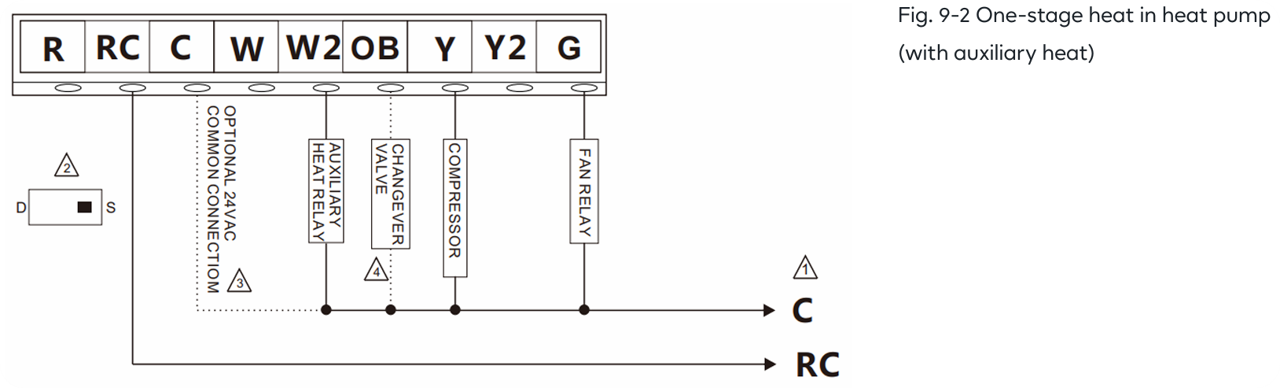

Installation Wiring for One-stage Heat in Heat Pump (with auxiliary heat) Single Transformer

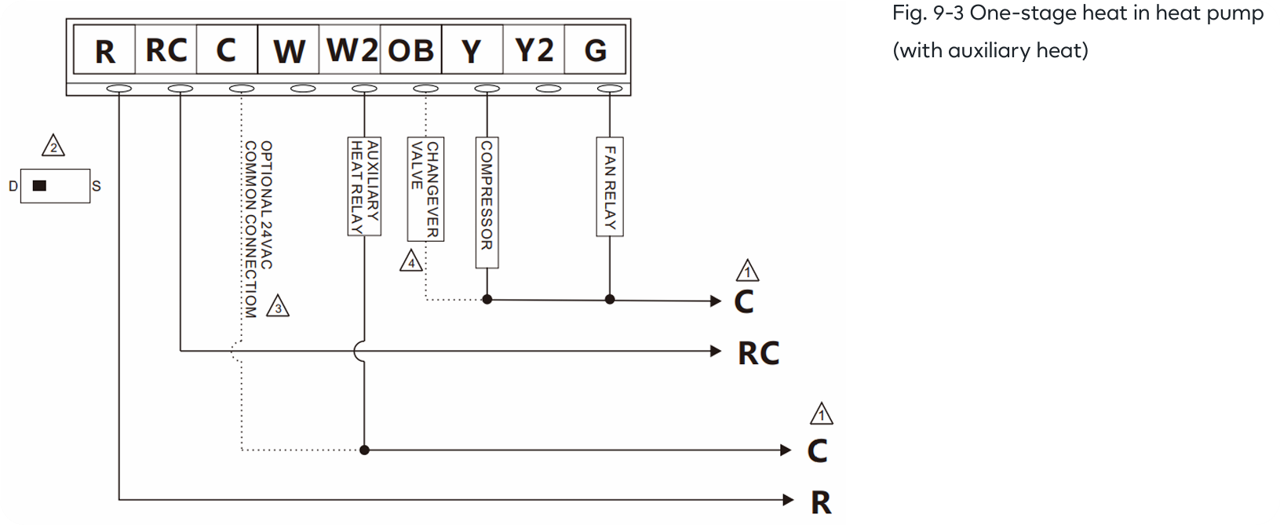

Installation Wiring for One-stage Heat in Heat Pump (with auxiliary heat) Double Transformer

Installation Wiring for Two-Stage Heat in Heat Pump (with auxiliary heat) Single Transformer

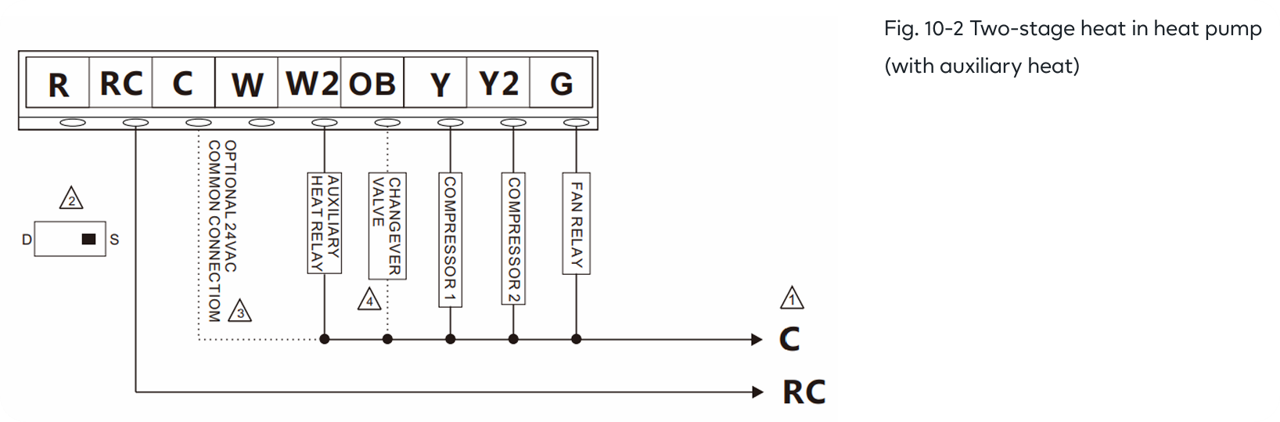

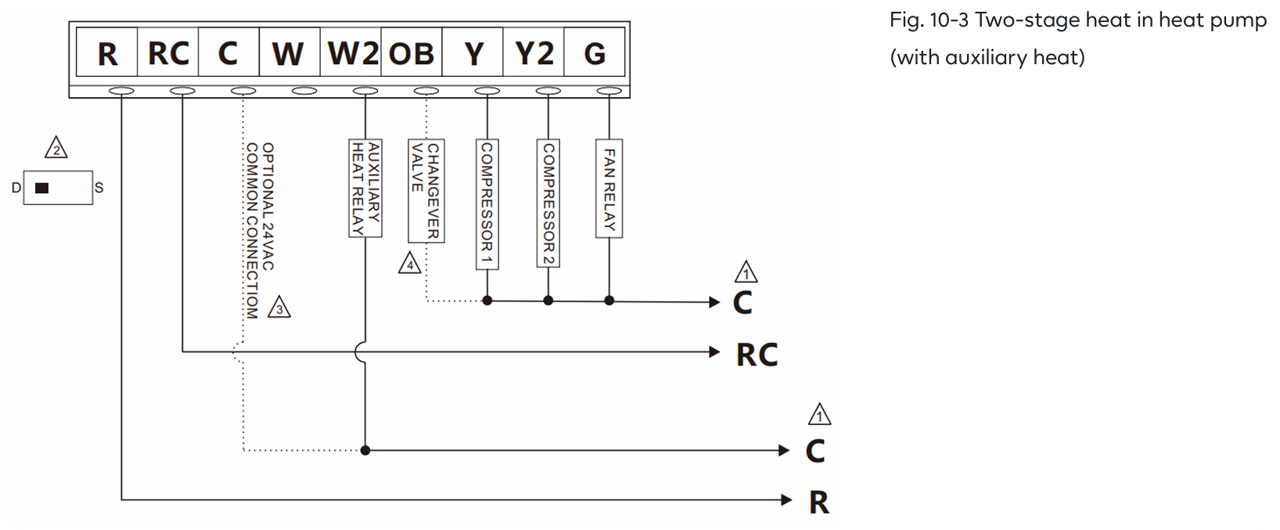

Installation Wiring for Two-Stage Heat in Heat Pump (with auxiliary heat) Double Transformer

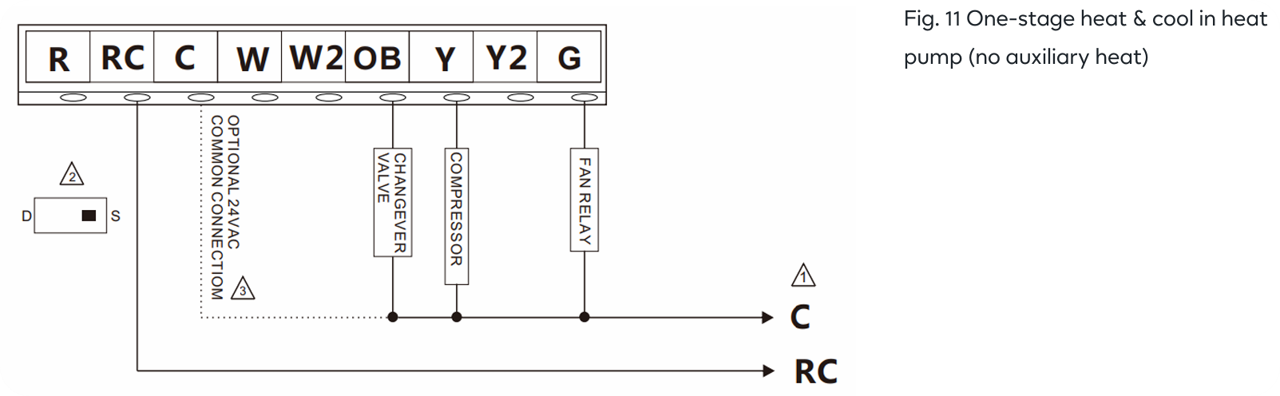

Installation Wiring for One-stage Heat & Cool in Heat Pump (no auxiliary heat)

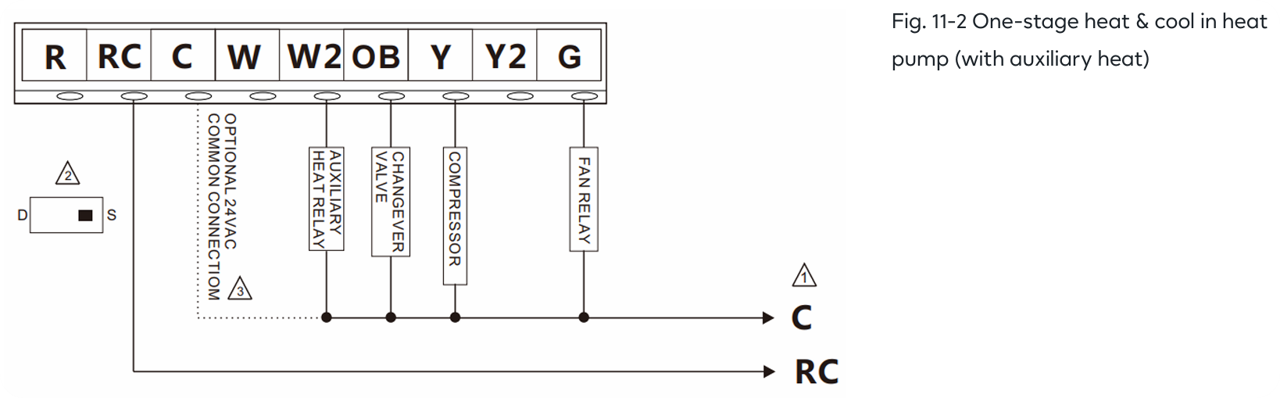

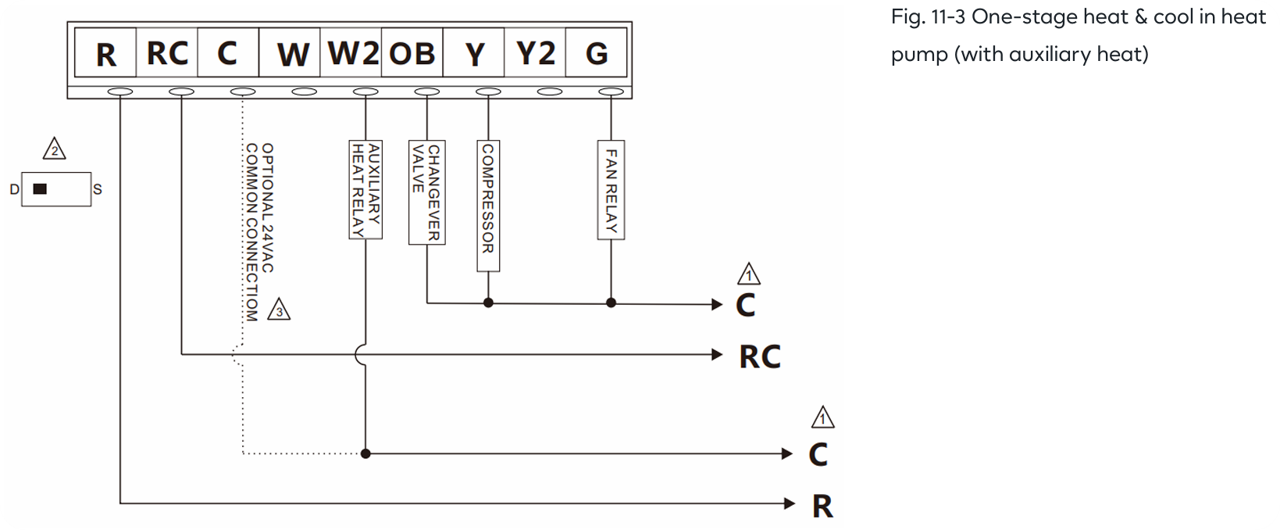

Installation Wiring for One-stage Heat & Cool in Heat Pump (with auxiliary heat) Single Transformer

Installation Wiring for One-stage Heat & Cool in Heat Pump (with auxiliary heat) Double Transformer

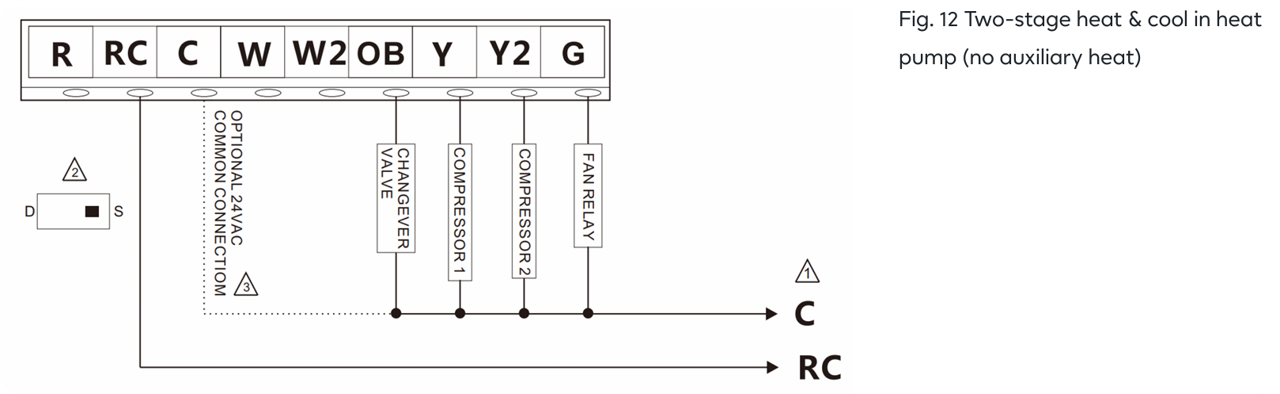

Installation Wiring for Two-Stage Heat & Cool in Heat Pump (no auxiliary heat)

Installation Wiring for Two-Stage Heat & Cool in Heat Pump (with auxiliary heat) Single Transformer

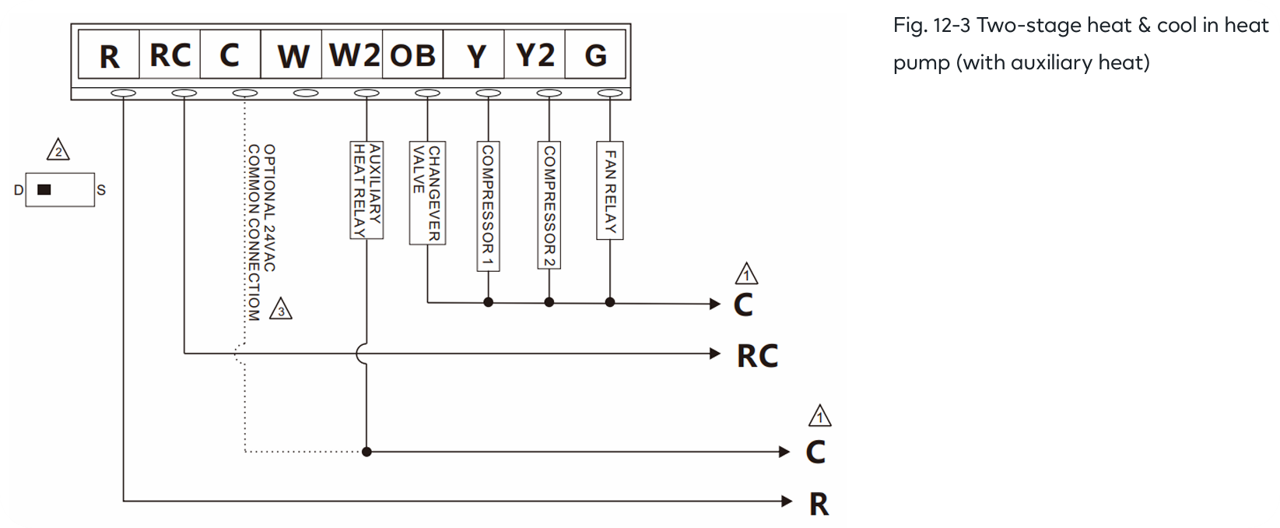

Installation Wiring for Two-Stage Heat & Cool in Heat Pump (with auxiliary heat) Double Transformer

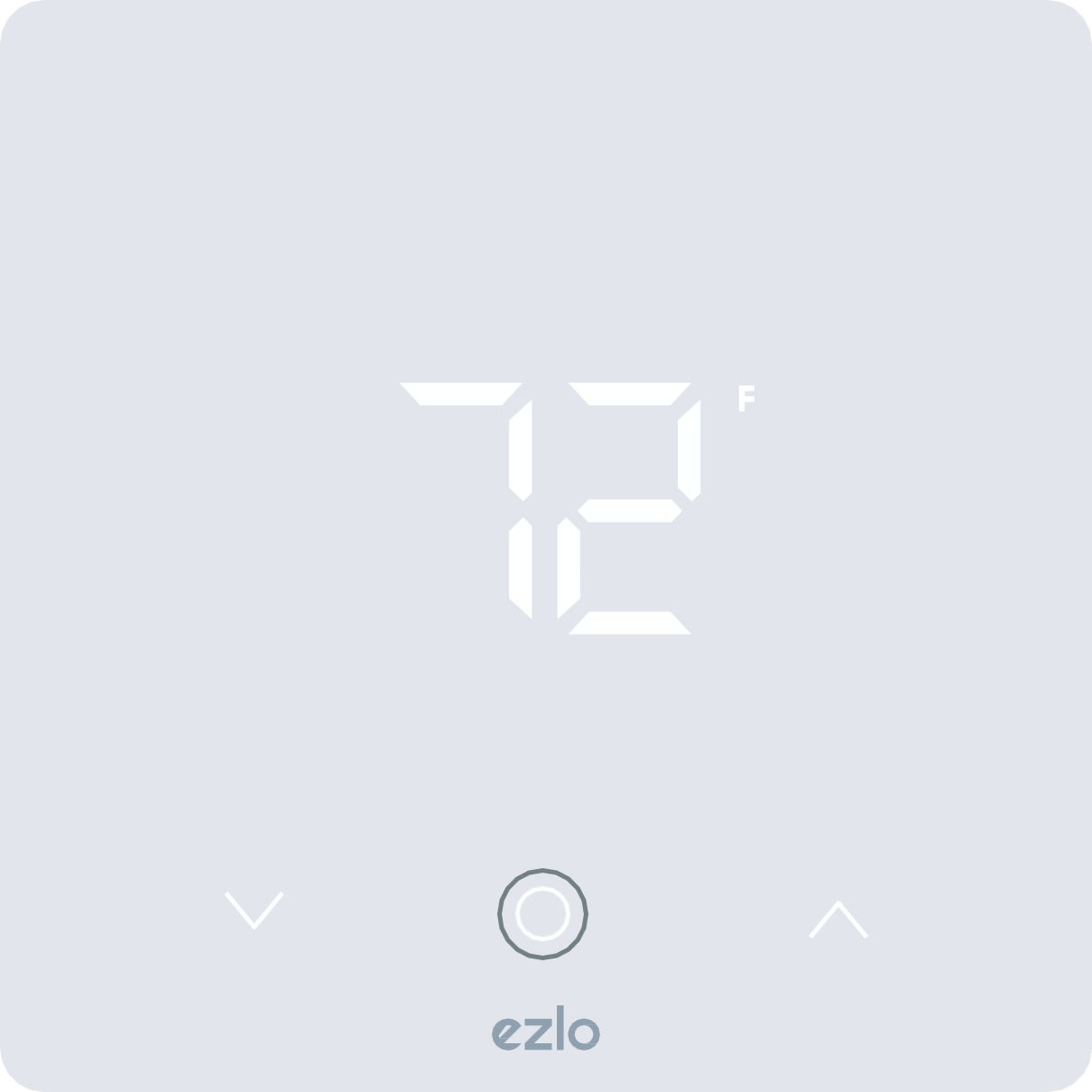

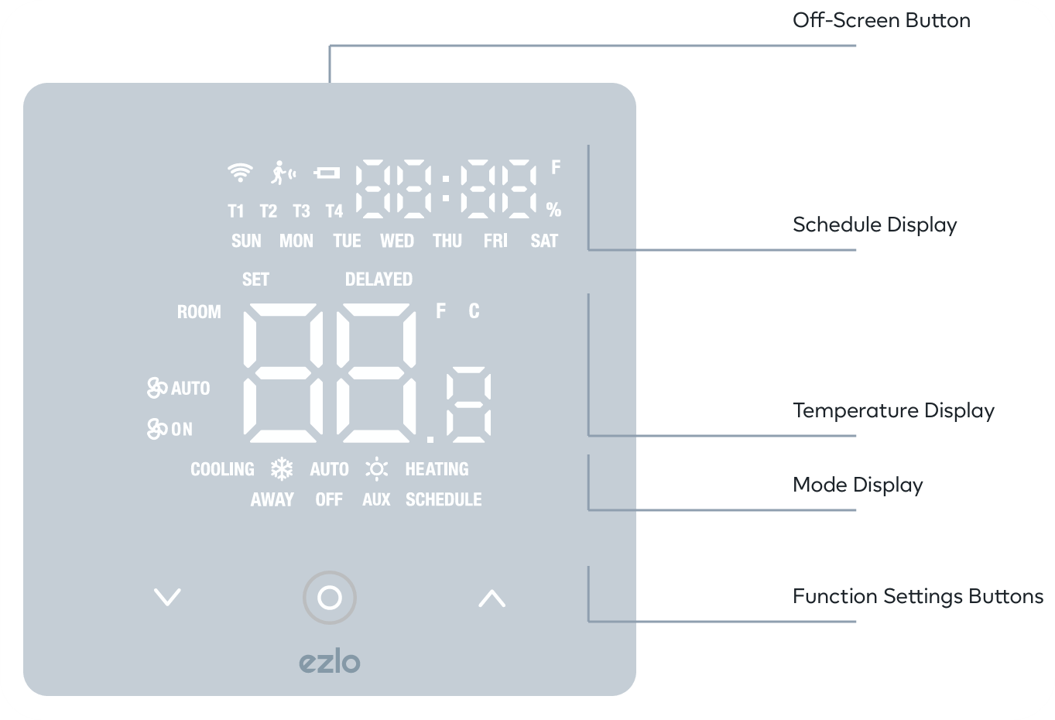

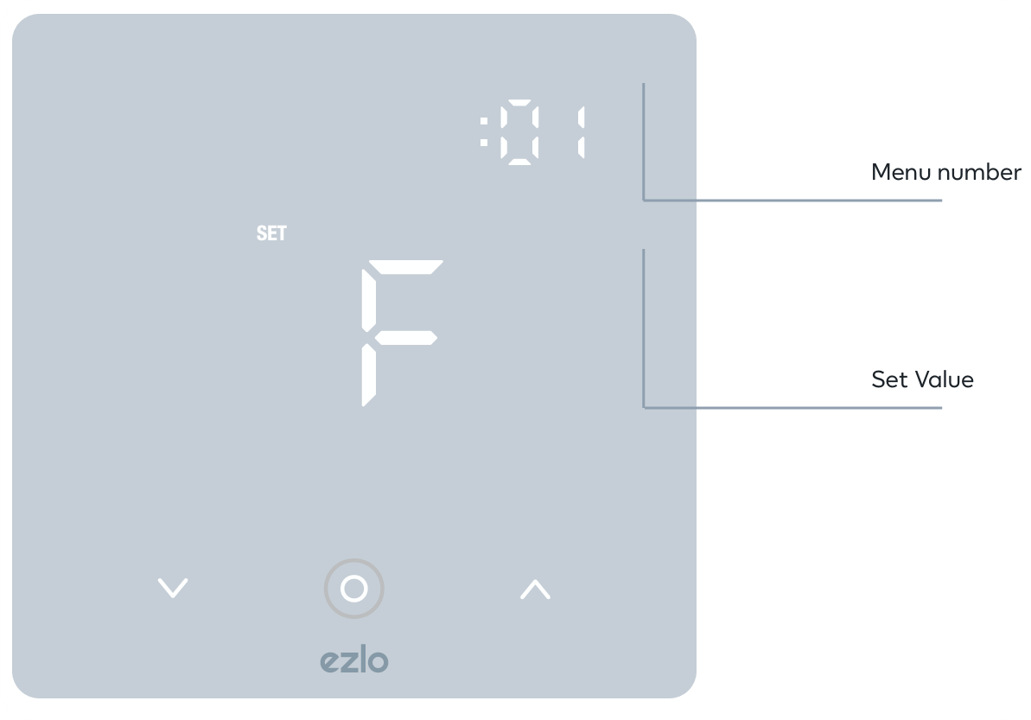

Thermostat Display Overview

Menu Description

Menu Number	Item	Range	Default	Description
1	Temp. Unit	C/F	F	C: Celsius F: Fahrenheit
2	Power Failure Memory	0-1	1	When power on again: 0: Device will be in shutdown state (OFF). 1: Device will stay the last status of working mode.
3	SCREEN OFF	0-90min	1min	Automatic screen off time, When the device is charged by C&R port: 0: The screen will not turn off automatically; Set 1-90mins to automate turn off the screen. When the device is powered by battery: Set 3-90secs to automate turn off the screen; 0-2: After 8sec the screen will be turned off automatically.
4	Beep Set	0-1	1	0: OFF, 1: ON
5	Backlight Brightness	0-8	8	1-8: 8 level backlight brightness, 1 is the dimmest, 8 is the brightest
6	Temp. Upper Limit	1-99°C / 1-99°F	37°C / 98°F	Temp. upper limit value, accuracy n*1
7	Temp. Lower Limit	0-99°C / 1-99°F	5°C / 41°F	Temp. lower limit value, accuracy n*1
8	Temp. Offset	-99~99°C / -99°F-99°F	0°C / 0°F	Temp. offset value(°C or °F ), accuracy 0.1 (n*0.1)
9	Humidity Offset	-20~+20	0	Humidity offset value
10	Fan and Humidity Display Select	0-3	0	0: The most simplest display, fan mode and humidity will not display. 1: Display fan mode 2: Display humidity 3: Display fan mode and humidity
11	Panel Lock	0-3	0	0: Disabled 1: Secret Menu operation is invalid, except for modifying parameter 11, other operation is valid. 2: Secret Menu operation, changing mode and setpoint is invalid, only valid for adding/removing network or modifying parameter 11. 3: Only valid for adding/removing network.
12	1st Temp. Hysteresis	3-90,n0.1°C / 3-90,n0.1°F	10 / 20	Specifies the minimum temperature difference between the room temperature and the desired setpoint before the first stage of heating or cooling is allowed to turn on. (0.3-9 degrees).
13	2nd Temp. Hysteresis	3-90,n0.1°F / 3-90,n0.1°C	10 / 20	Specifies the additional minimum temperature difference after the first stage turns on before the second stage is activated. (0.3-9 degrees)
14	3rd Temp. Hysteresis	3-90,n0.1°F / 3-90,n0.1°C	10 / 20	Specifies the additional minimum temperature difference after the second stage turns on before the third stage is activated. (0.3-9 degrees)
15	System Control Type	0-12	12	0: One-stage Conventional cool only 1: Two-stage Conventional cool only 2: One-stage Conventional heat only 3: One-stage Conventional heat only (no fan) 4: Two-stage Conventional heat only 5: One-stage Conventional heat & cool 6: Two-stage Conventional heat & cool 7: One-stage Cool in heat pump 8: Two-stage Cool in heat pump 9: One-stage heat in heat pump (optional: Aux) 10: Two-stage heat in heat pump (optional: Aux) 11: One-stage heat & cool in heat pump (optional: Aux) 12: Two-stage heat & cool in heat pump (optional: Aux)
16	Changeover Valve Logic	0-1	0	0=When the heat pump starts cooling, O/B turns on; when the heat pump starts heating, O/B turns off 1=When the heat pump starts heating, O/B turns on; when the heat pump starts cooling, O/B turns off
17	Compressor Protection Time	0~10min	1min	The setting of compressor delay time from shutdown to startup, unit: min
18	EM Emergency (AUX) Heat Mode	0-1	0	1: ON 0: OFF Note: This mode is only valid for heat pump system with heating function
19	Time Display Selection	0-2	0	When Schedule function is activated: 0: Time, week, current time period displays. 1: Week and current time period displays. 2: Time, week and current time period does not display.
20	Fan Shutdown Delay Time	0-127	0	This parameter is valid only when the fan mode is AUTO. 0: When the compressor is shut down, the fan is also shut down. 1-127: The fan shuts down in a delay of n*minutes after the compressor is shut down, unit: minute
21	Compressor delay countdown display	0-1	0	0: No Display 1: Display
22	Whether to enable electrical auxiliary heat	0-1	1	0: Disable 1: Enable
98	RESET FACTORY	0-1	0	1: Restore factory setting
99	Firmware Version (Read only)	--	1	1-255

Navigating the Thermostat menu

Setpoint Setting

To adjust the desired indoor temperature:

Press the "▲" (up) or "▼" (down) button.
The "SET" icon will appear on the screen,
indicating that you are in setpoint adjustment mode.
Use the buttons to choose your desired
temperature:
• In Celsius: Range is 5°C to 37°C, adjustable in 0.5°C increments.
• In Fahrenheit: Range is 41°F to 98°F, adjustable in 1°F increments.
Once you’ve selected your desired temperature, press any button to save the setting and exit.

Mode Setting

With the screen on, press • — the mode icon will flash.
Press • again to cycle through modes:
• OFF→HEAT→COOL→AUTO→AUX
(Emergency Heating)
Press ▲,▼, or set • to confirm the desired mode.
The MODE icon will stop flashing.

Fan Mode & Schedule Setting

With screen on, long press • for 3 sec to enter settings.
Sequence: FAN MODE→SCHEDULE MODE→WEEK→TIME→EXIT
Use ▲ or ▼ to change values (icon flashes), press • to confirm.
If SCHEDULE MODE is enabled, the “SCHEDULE” icon will appear on the main screen.
Long press • for 1 sec or no input for 20 sec = Exit.

Fan Modes

Fan On: The fan runs continuously when the
thermostat is on. It stops only when the device is turned off.
Fan Auto: The fan runs only when heating or
cooling is active. It stops automatically when the system is idle or off.

Secret Menu

With the thermostat set to OFF, press and hold "▼"+ "•" for 3 seconds to enter the parameter settings.

Use "▼" or "▲" to scroll through parameter values.

Press • to move to the next setting.

To exit, press and hold "▼"+"•" for 1 second, or wait 20 seconds without activity.

Thermostat Setup for Each System Type

Once the thermostat wiring is complete, enter the Secret Menu to configure the system type settings.
This ensures the thermostat operates correctly in the desired mode (Heat, Cool, Auto, etc.).

Before pairing your new Ezlo Thermostat to your home controller, set the parameters to adjust the thermostat’s behavior. See Menu description and Z-Wave parameters sections |
pages 23–28 and 35–39.
If your Ezlo Thermostat has already been paired with your home controller and you want to change the parameters, please note that an
exclusion and pairing again will be required to
update the UI controls and thermostat
capabilities on your controller.

Secret menu .15 - System Type Configuration

(Possible Values 0-12)

Default Value: 7

0: One-stage Conventional Cool Only

1: Two-stage Conventional Cool Only

2: One-stage Conventional Heat Only

3: One-stage Conventional Heat Only (No Fan)

4: Two-stage Conventional Heat Only

5: One-stage Conventional Heat & Cool

6: Two-stage Conventional Heat & Cool

7: One-stage Cool in Heat Pump

8: Two-stage Cool in Heat Pump

9: One-stage Heat in Heat Pump (Optional: Aux)

10: Two-stage Heat in Heat Pump (Optional: Aux)

11: One-stage Heat & Cool in Heat Pump (optional: Aux)

12: Two-stage Heat & Cool in Heat Pump (optional: Aux)

Note:
See pages 24–26 for additional settings that may
need to be adjusted based on the selected system
type. These can also be configured via Z-Wave
parameters listed on page 34–39.

Standby & Backlight Brightness Settings

1. The screen will turn off automatically when
there is no user interaction.
Default time: 8 seconds when powered by
batteries, 1 minute when powered by 24V.

2. When the screen is on, pressing the top button
turns it off.
Note: Pressing any button will turn the screen
back on.

3. Long-pressing the top button temporarily
adjusts the screen brightness.
Notes: If the screen is off, this will turn it on.
The brightness will return to the value set in the
Secret Menu or via Z-Wave configuration.

4. Display of fan mode and humidity icons can be
enabled/disabled through the Secret Menu or
Z-Wave configuration.
Note: These icons are hidden by default.

5. When the Schedule function is enabled, the
current time, weekday, and time period icons
can also be enabled/disabled through the
Secret Menu or Z-Wave configuration.
Note: These are shown by default.

Including the Z-Wave Thermostat to an Ezlo Z-Wave Hub

Step 1: In the MiOS app

1. Open MiOS and go to "More."

2. Select "Devices" and tap the "+" in the top right.

3. Choose your Ezlo Z-Wave Hub from the controller list.

4. Select "Thermostats" and select "Ezlo Thermostat" from the list

5. Follow the pairing instructions provided by the Wizard.

Step 2: On your Ezlo Z-Wave Thermostat

1. Press and hold "▼" and "▲" for 3 seconds to open the Z-WAVE menu.

2. If the thermostat is not connected, "---" will appear. Otherwise, the node ID is shown.

3. Press "•" to enter learning mode.

Note: Follow the same steps to exclude the device from the network. When removed from the Z-Wave network, the device restores it’s Z-Wave factory setting.

Including the Z-Wave Thermostat to other Z-Wave compatible hubs

Note: First, check the manual of the specific third party compatible how to include Z-Wave devices.

Step 1: Put the Z-Wave hub in including Mode.

Step 2: On the Thermostat

• Press and hold "▼" and "▲" for 3 seconds to open the Z-WAVE menu.

• If the thermostat is not connected, "---" will appear. Otherwise, the node ID is shown.

• Press “•” to enter learning mode.

Note: Follow the same steps to exclude the device from the network. When removed from the Z- Wave network, the device restores it’s Z-Wave factory setting.

Z-Wave Command Classes

S2 Supported

COMMAND_CLASS_VERSION

COMMAND_CLASS_DEVICE_RESET_LOCALLY

COMMAND_CLASS_BATTERY

COMMAND_CLASS_THERMOSTAT_SETPOINT

COMMAND_CLASS_THERMOSTAT_OPERATING_STAT

COMMAND_CLASS_THERMOSTAT_FAN_STATE

COMMAND_CLASS_TIME_PARAMETERS

COMMAND_CLASS_ASSOCIATION

COMMAND_CLASS_ASSOCIATION_GRP_INFO

COMMAND_CLASS_MANUFACTURER_SPECIFIC

COMMAND_CLASS_POWERLEVEL

COMMAND_CLASS_SENSOR_MULTILEVEL

COMMAND_CLASS_THERMOSTAT_MODE

COMMAND_CLASS_THERMOSTAT_FAN_MODE

COMMAND_CLASS_TIME

COMMAND_CLASS_CONFIGURATION

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION

COMMAND_CLASS_FIRMWARE_UPDATE_MD

Non S2 Support

COMMAND_CLASS_ZWAVEPLUS_INFO

COMMAND_CLASS_SECURITY_2

COMMAND_CLASS_TRANSPORT_SERVICE

COMMAND_CLASS_SUPERVISION

Z-Wave Association Groups

AG ID	Max Node ID	Command Class	Trigger situation
0x01	0x01	COMMAND_CLASS_SENSOR_MULTILEVEL_V5, SENSOR_MULTILEVEL_REPORT_V5	The change between the current detected temperature and the last reported gateway temperature is greater than the value set in parameter 2. The change between the current detected humidity and the last reported gateway humidity is greater than the value set in parameter 3.
		COMMAND_CLASS_THERMOSTAT_MODE_V2, THERMOSTAT_MODE_REPORT	Thermostat mode changes
		COMMAND_CLASS_THERMOSTAT_OPERATING_ STATE, THERMOSTAT_OPERATING_STATE_REPORT	Thermostat status changes
		COMMAND_CLASS_THERMOSTAT_SETPOINT_V2, THERMOSTAT_SETPOINT_REPORT_V2	Set point value changes
		COMMAND_CLASS_THERMOSTAT_FAN_MODE, THERMOSTAT_FAN_MODE_REPORT	Fan mode changes
		COMMAND_CLASS_THERMOSTAT_FAN_STATE, THERMOSTAT_FAN_STATE_REPORT	Fan status changes
		COMMAND_CLASS_DEVICE_RESET_LOCALLY, DEVICE_RESET_LOCALLY_NOTIFICATION	Restore factory setting
		COMMAND_CLASS_BATTERY, BATTERY_REPORT	The change in battery power is greater than 5%

Z-Wave Parameter Settings

Number	Name	Size	Information	Default	Possible Values
1	Temp. Unit	1	Secret menu No. E20: 0: Celsius 1: Fahrenheit	0	0-1
2	Temp. Difference Reporting	2	Unit 0.1°C 0: Disabled 3-255: n *0.1°C automatically report the temperature to the gateway when temperature variation greater than this value	5	0, 3-255
2	Temp. Difference Reporting	2	Unit 0.1°F 0: Disabled 3-255: n *0.1°F automatically report the temperature to the gateway when temperature variation greater than this value	10	0, 3-255
3	Humidity Difference Reporting	1	0: Disabled 1-99: Automatically report the humidity to the gateway when humidity variation greater than this value	4	0-99
12	Power Failure Memory	1	Secret menu No. E2 When power on again: 0: Device will be in shutdown state (OFF). 1: Device will stay the last status of working mode	1	0-1
13	SCREEN OFF	1	Secret menu No. E3 Automatic screen off time, When the device is charged by C&R port: 0: The screen will not turn off automatically; Set 1-90mins to automate turn off the screen. When the device is powered by battery: Set 3-90secs to automate turn off the screen; 0-2: After 8sec the screen will be turned off automatically.	1	0-90
14	Beep Set	1	Secret menu No. E4: 0:OFF 1:ON	1	0-1
15	Backlight Brightness	1	Secret menu No. E5: 1-8: 8 level backlight brightness, 1 is the dimmest, 8 is the brightest	8	1-8
16	Temp. Upper Limit	1	Secret menu No. E06: Temperature upper limit value, accuracy n*1	37 (°C) 98 (°F)	1-99
17	Temp. Lower Limit	1	Secret menu No. E07: Temperature lower limit value, accuracy n*1	5 (°C) 41 (°F)	0-98
18	Temp. Offset	1	Secret menu No. E08: Temperature offset value (°C or °F) , accuracy 0.1 (n *0.1	0	(-99~+99) (°C) (-99~+99) (°F)
19	Humidity Offset	1	Secret menu No. E09: Humidity offset value	0	-20~+20
20	Fan & Humidity Display Select	1	Secret menu No. E10: Fan and humidity display mode selection 0: The most simplest display, fan mode and humidity will not display. 1: Display fan mode 2: Display humidity 3: Display fan mode and humidity Note: When schedule function is enabled, the time, week, and time period are displayed, if the humidity display at the same time, the humidity and time are displayed alternately.	0	0-3
21	Panel Lock	1	Secret menu No. E11: 0: Disabled 1: Secret menu operation is invalid, except for modifying parameter 11, other operation is valid. 2: Secret Menu operation, changing mode and setpoint is invalid, only valid for adding/removing network or modifying parameter 11. 3: Only valid for adding/ removing network.	0	0-3
22	1st Temp. Hysteresis	1	Secret menu No. E12: accuracy: 0.1, Specifies the minimum temperature difference between the room temperature and the desired setpoint before the first stage of heating or cooling is allowed to turn on. (0.3-9 degrees). For example, if the heat setpoint is 68° and the 1st stage hysteresis is set to 2 degrees, the room temperature will need to reach 66° before the heat turns on.	10 (°C) 2 (°F)	3-90 (°C) 3-90 (°F)
23	2nd Temp. Hysteresis	1	Secret menu No. E13: accuracy: 0.1, Specifies the additional minimum temperature difference after the first stage turns on before the second stage is activated. (0.3-9 degrees)	10 (°C) 20 (°F)	3-90 (°C) 3-90 (°F)
24	3rd Temp. Hysteresis	1	Secret menu No. E14: accuracy: 0.1, Specifies the additional minimum temperature difference after the second stage turns on before the third stage is activated. (0.3-9 degrees)	10 (°C) 20 (°F)	3-90 (°C) 3-90 (°F)
25	System Control Type	1	Secret menu No. E15: See the Controlling Type for details Note: This parameter does not change after factory settings are restored. To be more compatible with gateways, after setting this parameter, please add in the gateway again.	12	0-12
26	Changeover Valve Logic	1	Secret menu No. E16: 0=When the heat pump starts cooling, O/B turns on; when the heat pump starts heating, O/B turns off 1=When the heat pump starts heating, O/B turns on; when the heat pump starts cooling, O/B turns off	0	0-1
27	Compressor Protection Time	1	Secret menu No. E17: The setting of compressor delay time from shutdown to startup, unit: min	1	0-10
28	EM (AUX) Emergency Heat Mode	1	Secret menu No. E18: 1: ON 0: OFF Note: This mode is only valid for heat pump system with heating function	0	0-1
29	Time Display Selection	1	When Schedule function is activated: 0: Time, week, current time period displays. 1: Week and current time period displays. 2: Time, week and current time period does not display.	0	0-2
30	Fan Shutdown Delay Time	1	This parameter is valid only when the fan mode is AUTO. 0: When the compressor is shut down, the fan is also shut down. 1-127: The fan shuts down in a delay of n*minutes after the compressor is shut down, unit: minute	0	0-127
31	Compressor delay countdown display	1	0: No Display 1: Display	0	0-1
32	Whether to enable electrical auxiliary heat	1	0: Disable 1: Enable	1	0-1
45	Schedule Function Selection	1	0: Disabled 1: Enabled	0	0-1
46	The 1st period from Mon-Sun	2	Byte1(MSB): Minute Byte2(LSB): Hour	Byte1: 0 Byte2: 6	Byte1: 0-59 Byte2: 0-23
47	The 2nd period from Mon-Sun	2	Byte1(MSB): Minute Byte2(LSB): Hour	Byte1: 0 Byte2: 8	Byte1: 0-59 Byte2: 0-23
48	The 3nd period from Mon-Sun	2	Byte1(MSB): Minute Byte2(LSB): Hour	Byte1: 0 Byte2: 18	Byte1: 0-59 Byte2: 0-23
49	The 4nd period from Mon-Sun	2	Byte1(MSB): Minute Byte2(LSB): Hour	Byte1: 0 Byte2: 22	Byte1: 0-59 Byte2: 0-23
50	Heat SetPoint for 1st period from Mon-Sun	2	n0.1 Celsius or n0.1 Fahrenheit	Celsius:210 Fahrenheit: 700	The range is greater than the lower limit and smaller than the upper limit
51	Heat SetPoint for 2nd period from Mon-Sun	2	n0.1 Celsius or n0.1 Fahrenheit	Celsius:165 Fahrenheit: 620	The range is greater than the lower limit and smaller than the upper limit
52	Heat SetPoint for 3rd period from Mon-Sun	2	n0.1 Celsius or n0.1 Fahrenheit	Celsius: 210 Fahrenheit: 700	The range is greater than the lower limit and smaller than the upper limit
53	Heat SetPoint for 4th period from Mon-Sun	2	n0.1 Celsius or n0.1 Fahrenheit	Celsius: 165 Fahrenheit: 620	The range is greater than the lower limit and smaller than the upper limit
54	Cool SetPoint for 1st period from Mon-Sun	2	n0.1 Celsius or n0.1 Fahrenheit	Celsius: 255 Fahrenheit: 780	The range is greater than the lower limit and smaller than the upper limit
55	Cool SetPoint for 2nd period from Mon-Sun	2	n0.1 Celsius or n0.1 Fahrenheit	n0.1 Celsius or n0.1 Fahrenheit	The range is greater than the lower limit and smaller than the upper limit
56	Cool SetPoint for 3rd period from Mon-Sun	2	n0.1 Celsius or n0.1 Fahrenheit	Celsius: 255 Fahrenheit: 780	The range is greater than the lower limit and smaller than the upper limit
57	Cool SetPoint for 4th period from Mon-Sun	2	n0.1 Celsius or n0.1 Fahrenheit	Celsius: 280 Fahrenheit: 820	The range is greater than the lower limit and smaller than the upper limit
58-64	The 1st period for Mon...Sun	2	Byte1(MSB): Minute Byte2(LSB): Hour	Byte1: 0 Byte2: 6	Byte1: 0-59 Byte: 0-23
65-71	The 2nd period for Mon...Sun	2	Byte1(MSB): Minute Byte2(LSB): Hour	Byte1: 0 Byte2: 8	Byte1: 0-59 Byte: 0-23
72-78	The 3rd period for Mon...Sun	2	Byte1(MSB): Minute Byte2(LSB): Hour	Byte1: 0 Byte2: 18	Byte1: 0-59 Byte: 0-23
79-85	The 4th period for Mon...Sun	2	Byte1(MSB): Minute Byte2(LSB): Hour	Byte1: 0 Byte2: 22	Byte1: 0-59 Byte: 0-23
86-92	The 1st heat SetPoint for Mon...Sun	2	n0.1 Celsius or n0.1 Fahrenheit	Celsius: 210 Fahrenheit: 700	The range is greater than the lower limit and smaller than the upper limit
93-99	The 2nd heat SetPoint for Mon...Sun	2	n0.1 Celsius or n0.1 Fahrenheit	Celsius: 165 Fahrenheit: 620	The range is greater than the lower limit and smaller than the upper limit
100- 106	The 3rd heat SetPoint for Mon...Sun	2	n0.1 Celsius or n0.1 Fahrenheit	Celsius: 210 Fahrenheit: 700	The range is greater than the lower limit and smaller than the upper limit
107- 113	The 4th heat SetPoint for Mon...Sun	2	n0.1 Celsius or n0.1 Fahrenheit	Celsius: 165 Fahrenheit: 620	The range is greater than the lower limit and smaller than the upper limit
114- 120	The 1st cool SetPoint for Mon...Sun	2	n0.1 Celsius or n0.1 Fahrenheit	Celsius: 255 Fahrenheit: 780	The range is greater than the lower limit and smaller than the upper limit
121- 127	The 2nd cool SetPoint for Mon...Sun	2	n0.1 Celsius or n0.1 Fahrenheit	Celsius: 295 Fahrenheit: 850	The range is greater than the lower limit and smaller than the upper limit
128- 134	The 3rd cool SetPoint for Mon...Sun	2	n0.1 Celsius or n0.1 Fahrenheit	Celsius: 255 Fahrenheit: 780	The range is greater than the lower limit and smaller than the upper limit
135- 141	The 4th cool SetPoint for Mon...Sun	2	n0.1 Celsius or n0.1 Fahrenheit	Celsius: 280 Fahrenheit: 820	The range is greater than the lower limit and smaller than the upper limit
255	Factory Restore	1	1: Restore factory setting 0: Invalid	0	0-1

Regulatory Information FCC Information

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. Please take attention that changes or modification not expressly approved by Ezlo Innovation could void the user’s authority to operate the equipment. This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body. Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using and antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful Communication.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

1-Year Limited Warranty

We warrant this product to be free from defects in material and workmanship under normal and proper use for one year from purchase date of the original purchaser. We will, at its option, either repair or replace any part of its products that prove defective by reason of improper workmanship or materials. This limited warranty does not cover any damage to this product that results from improper installation, accident, abuse, misuse, natural disaster, insufficient or excessive electrical supply, abnormal mechanical or environmental conditions, or any unauthorized disassembly, repair or modification. This limited warranty shall not apply if: (i) the product was not used in accordance with any accompanying instructions, or (ii) the product was not used for its intended function. This limited warranty also does not apply to any product on which the original identification information has been altered, obliterated or removed, that has not been handled or packaged correctly, that has been sold as second-hand or that has been resold contrary to Country and other applicable export regulations.

You’re now ready to enjoy smarter

home control.

You can also download the Installation Manual here

Ezlo Thermostat Installation Manual.pdf4 MB

Search
