Thank you for choosing the Ezlo Z-Wave
Flood Sensor

You’ve taken the first step toward making your
home smarter and safer.

We want setting up to be as easy as possible but
if you’re finding yourself in need of help, our
outstanding human customer care is for you
through the following channels:

Toll-free number 866 966 2272
International number 702 487 9770
support@ezlo.com
support.ezlo.com

Index

1. Familiarize yourself with your
Ezlo Z-Wave Flood Sensor

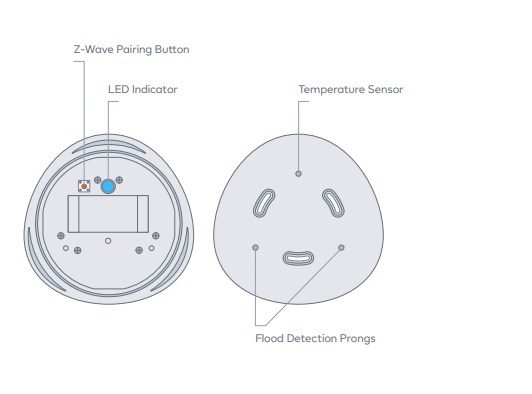

1.1 Overview

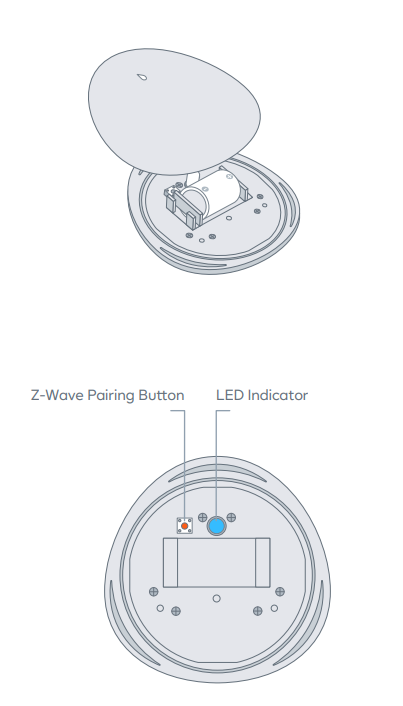

• Z-Wave Pairing Button
• LED indicator
• Temperature Sensor
• Flood Detection Prongs

Warning: the flood-detection prongs on the

underside are pointed by design. When opening the

sensor, twist the case by its smooth edges to avoid

contact with the base and the sharp prongs.

 1.2 Specifications

Power supply:                                  ER14250 3.6V Battery

Storage environment:                     -10°C-50°C, 0%-80%

Operational temperature:                0~40°C

Radio protocol:                                Z-Wave plus

Z-Wave Radio frequency:                908.42MHz(US)

Z-Wave US-LR Radio Frequency:    912.00MHz (default channel)

                                                        920.00MHz (back up channel)

Range:                                             More than 300 feet outdoors
                                                        About 130 feet indoors (depending
                                                        on building materials)

Dimensions:                                    Main body: 68 mm (W) * 22mm (H)
                                                       Extension probe: 500 (W) * 5 mm (H)

Working current:                            About 10mA

Stan by current:                               About 30uA

2. Opening the sensor

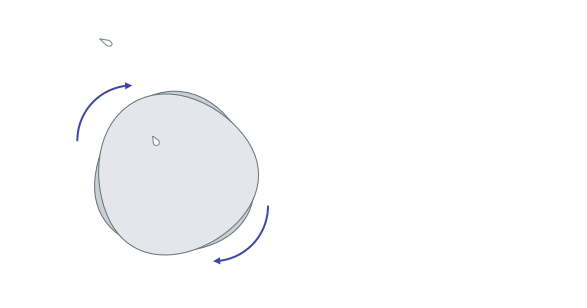

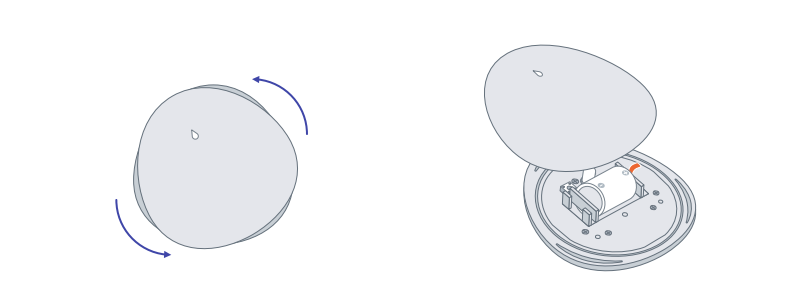

1. Twist the flood sensor case counterclockwise and

remove it to access the battery compartment.

Remove the battery pull tab to power the sensor

WARNING: the flood-detection
prongs on the underside are
pointed by design. When
opening the sensor, twist the
case by its smooth edges to
to avoid contact with the base and
the sharp prongs.

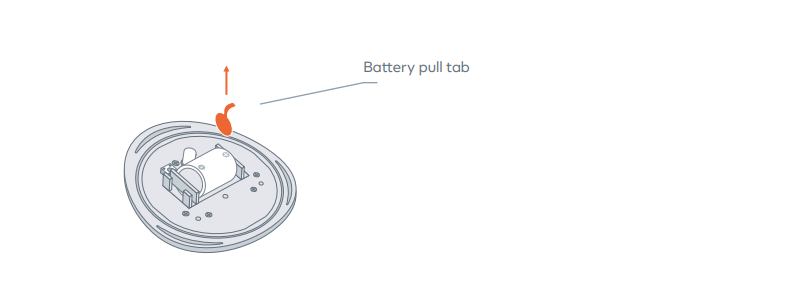

2. Remove the Battery pull tab

NOTE:

When powered, the device will indicate Z-Wave status with LED:

1. Blink slowly for 3s: the device is not added to any Z-Wave network.

2. Solid for 3s: the device is already added to the Z-Wave network.

3. Add the device (see "Adding/removing the device" on page 6)

4. Close the cover and turn it clockwise.

5. Place the sensor on a surface prone to flooding,

or use the extension probe (see "Installation")

WARNING: the flood-detection prongs on the
underside are pointed by design. When opening the
sensor, twist the case by its smooth edges to avoid
contact with the base and the sharp prongs.

3. Installation

The Ezlo Z-Wave Flood Sensor should not be
mounted directly on or near metal framing or other
large metallic objects since metal objects may
weaken the radio signal strength.

After “activation” process, the sensor can work
without any installation. Further more, you can use
the extension probe to fix sensor body.

To install with extension probe,

follow the steps:

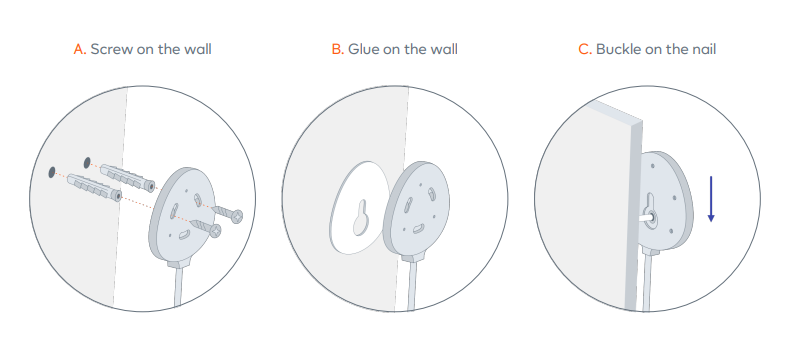

3.1 There are 3 kinds of methods to install the base

plate of extension probe into the wall.

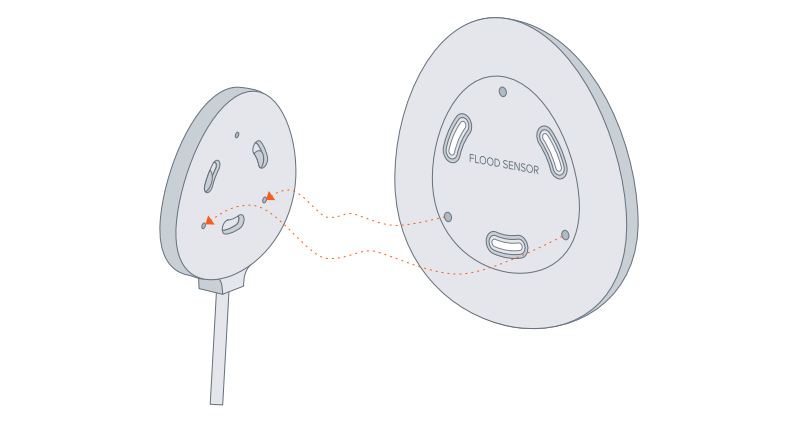

3.2 Magnet the sensor body (note the direction)

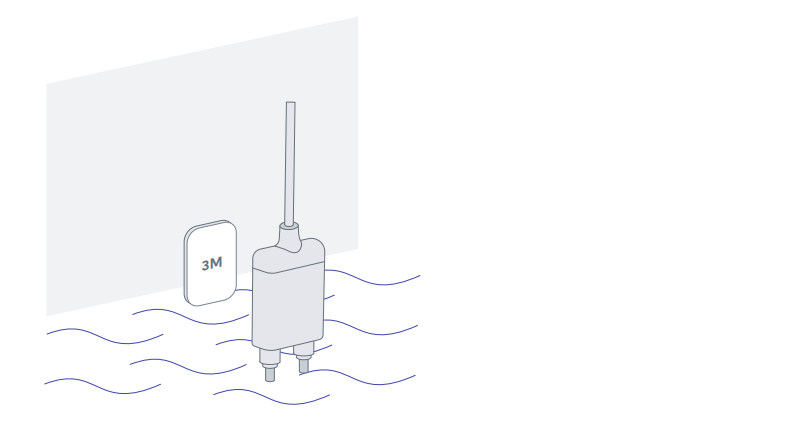

3.3 Paste the extension probe close to the area

where can detect water or leaks.

4. Pairing the Ezlo Z-Wave Flood

Sensor to your Ezlo Z-Wave Hub

(See chapter 5 for pairing with other Z-Wave compatible hubs)

4.1 Pairing:

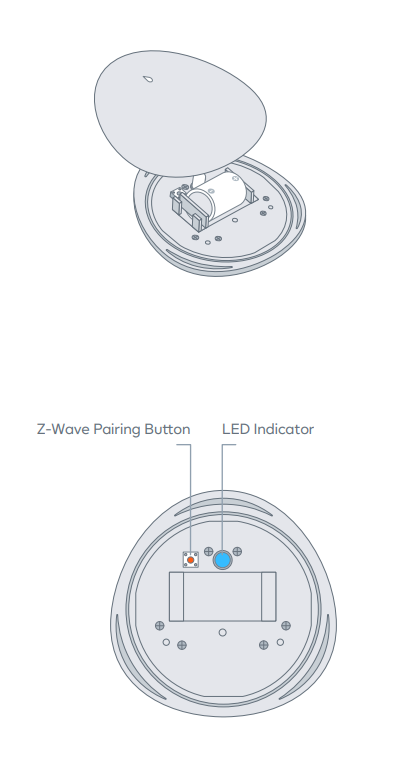

1. Open the cover of the sensor

2. Place the device within the direct range
of your Ezlo Z-Wave Hub.

3. Open the MiOS app and press on "More"

4. Tap on "Devices", then press on "+" in
the top right corner.

5.  Select your Ezlo Z-Wave Hub from the
Controllers list.

6. Choose or search for Ezlo Z-Wave Flood
Sensor from the list and press "Next".

7. The Ezlo Z-Wave Hub is now waiting for
you to make the Adding/Removing
procedure from the Sensor side.

8. Triple-click the Z-Wave Pairing Button
quickly; the LED indicator should blink
fast in blue

9. Wait for the pairing process to end.

10. Successful pairing will be confirmed by
the Z-Wave Hub's message.

200 Broadacres Dr, Bloomfield, NJ 07003
866-966-2272 • ezlo.com or support@ezlo.com

4.2 Unpairing

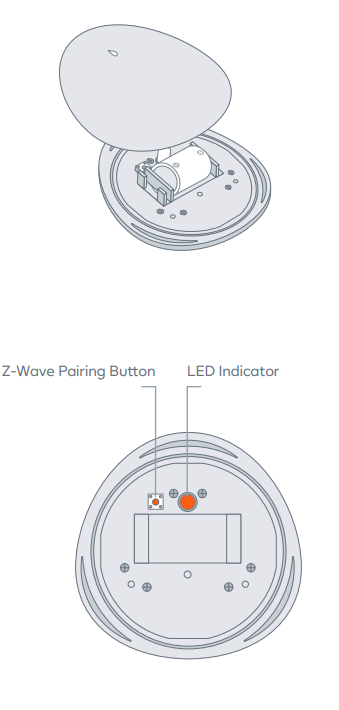

1. Open the cover

2. Place the device within the direct range of your Z-Wave hub.

3. Set the main controller remove mode (see the controller's manual).

4. Tap the Z-Wave button three times quickly. The LED indicator will turn solid blue to for two seconds if the sensor is removed successfully.

5. Wait for the unpairing process to end.

6. Successful pairing will be confirmed by the Z-Wave hub’s message.

5. Including the Ezlo Z-Wave
Flood Sensor to other Z-Wave
compatible hubs

5.1 Pairing

1. Open the cover.

2. Place the device within the direct range of your Z-Wave hub.

3. Set the main controller's adding mode (see the controller's manual).

4. Tap the Z-Wave button three times quickly. The LED indicator will blink blue to signal communication and turn solid blue for two seconds if the sensor is added successfully.

5. Wait for the pairing process to end.

6. Successful pairing will be confirmed by the Z-Wave controller's message

5.2 Unpairing

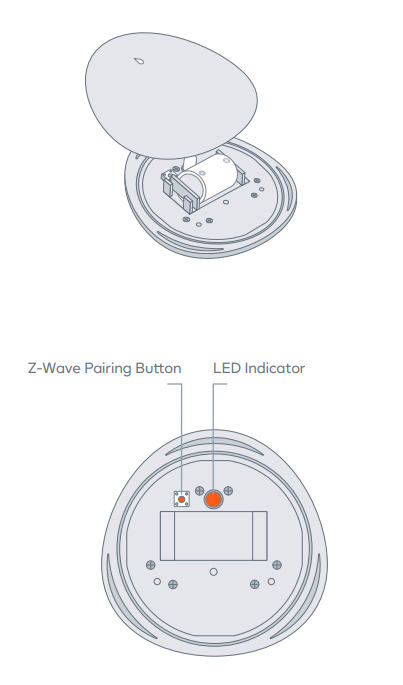

1. Open the cover

2. Place the device within the direct range of your
Z-Wave controller.

3. Set the main controller remove mode(see the
controller's manual).

4. Triple click the Z-Wave pairing button quickly,
the LED indicator should blink fast in orange.

5. Wait for the removing process to end.

6. Successful adding will be confirmed by the

Z-Wave controller's message

6. Resetting

The reset procedure clears the flood sensor's
memory, including Z-Wave network controller
information and advanced configuration.
To reset a Flood Sensor :Press and hold the
Z-button for more than 20 seconds.

NOTE: Use this procedure only in the event that
the network primary controller is missing or
otherwise inoperable

7. Associations

Association allows the flood sensor to control other
Z-Wave device such as Siren, Smart Switch, etc.

The Flood Sensor supports two association
groupings.

Group 1 reports the flooding detection, shock
detection and the battery level.

Group 2 is assigned to send BASIC SET command.

TIP:

1. The max number of associated nodes of each
group is 5.

2. Association allows for direct transmission of
control command between devices and takes
place without the participation of the main
controller

8. Wake Up

Wake up interval(Unit: seconds):
(1) When the device is included, short press Z-Wave
pairing button one time, after release, it will send a
Wake Up Notification

(2) Use the command “wake up interval set” to
configure the interval time of wake up. If the
configured time is less than 3600 seconds, the
device will not automatically wake up. The
minimum unit configured by the user is 3600
seconds.

(3) Wake Up Interval Capabilities Report CC
Minimum Wake Up Interval Seconds = 3600s
Maximum Wake Up Interval Seconds = 2678400s,
equal to 31days

Default Wake Up Interval Seconds = 3600s
Wake Up Interval Step Seconds = 3600s

9. Advanced Configuration

The Flood Sensor offers a wide variety of
advanced configuration settings. Below parameters
can be accessed from main controllers
configuration interface.


Parameter No.14 Enable/Disable BASIC SET
command

Flood sensor can send BASIC SET command to
nodes associated with group 2.
0-Disable.
1-Enable.
Default setting:0
Parameter size:1[byte]

Parameter No.15 Value of the BASIC SET

Flood sensor can reverse its value of BASIC SET
when flooding is triggered.
0-Send BASIC SET VALUE=0xFF to nodes
associated with group2 when flooding alarm is
triggered. Send BASIC SET VALUE=0x00 to nodes
associated with group2 when flooding alarm is
canceled.
1-Send BASIC SET VALUE=0x00 to nodes
associated with group2 when flooding alarm is
triggered. Send BASIC SET VALUE=0xFF to nodes
associated with group2 when flooding alarm is
canceled.
Default setting:0
Parameter size:1[byte]

Parameter No.16 Temperature offset value
The accuracy is 0.1 degrees, and the calibration
value range for US is 0-360 , which is -18.0 to 18.0
degrees Fahrenheit.
For example:
To calibrate the temperature -3 degrees
Fahrenheit, the value of parameter 3 can be set to
30
To calibrate the temperature 3 degrees Fahrenheit,
the value of parameter 3 can be set to 210
Available settings:0-360
Default setting:0
Parameter size:2[byte]

Parameter No.17 Set resend flooding alarm
interval
Available settings:0-240(Minute)
Default setting:5
Parameter size:1[byte]

Parameter No.18 Enable the moving alarm
Flood sensor can send BASIC SET command to
nodes associated with group 2.
0-Disable.
1-Enable.
Default setting:1
Parameter size:1[byte]

Parameter No.19 Temperature report time
Time for periodic temperature reporting (multiple:
10 minutes).For example, if set to 3, report every 30
minutes.
Available settings:3-240
Default setting:144
Parameter size:1[byte]

Parameter No.20 Set the high temperature
alarm trigger value
Precision 0.1 degrees, US uses Fahrenheit
temperature, with a Fahrenheit temperature range
of -670~2570, which is -67.0~257.0°F.
Available settings(US):-670-2570(-67-257°F)
Default setting(US):1040(104°F)
Parameter size:2[byte]

Parameter No.21 Temperature automatic report
threshold
Temperature reporting threshold.
0: Disable temperature report
≥0: Enable temperature report with an accuracy of
0.1 degrees, and US uses Fahrenheit temperature
with a range of 18-180 degrees, which is 1.8-18.0
degrees Fahrenheit.
Default setting:18(US)
Parameter size:1 [byte]

Parameter No.22 Set the low temperature alarm
trigger value
Precision 0.1 degrees, US uses Fahrenheit
temperature, with a Fahrenheit temperature range
of -670~2570, which is -67.0~257.0°F.
Available settings(US): -670-2570(-67-257°F)
Default setting(US): 320(32°F)
Parameter size: 2[byte]

Parameter No.24 Enable/Disable blinking LED
when alarm being triggered
0-Disable.
1-Enable.
Default setting: 1
Parameter size: 1[byte]

Parameter No.32 Low battery alarm threshold
Set the low battery alarm threshold.
Available settings: 10-50(10%-50%)
Default setting: 20(20%)
Parameter size: 1[byte]

Parameter No.33 Battery level report interval
The battery level is reported at a fixed time, and
once the scheduled time is reached, the battery
level is reported at a fixed time. Unit:hours.
Available settings: 1-168
0-Disable.
Default setting: 4
Parameter size: 1[byte]

10. FCC NOTICE

This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1)This device may not cause harmful interference
(2)This device must accept any interference received, including interference that may
cause undesired operation.

The manufacturer is not responsible for any radio or tv interference caused by
unauthorized modifications or change to this equipment. Such modifications or change
could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation of this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.

RF warning statement:
The device has been evaluated to meet general RF exposure requirement. The device can
be used in portable exposure condition without restriction.
