Ezlo Z-Wave Smart Plug - Installation Manual

Jonathan B
Jonathan B
  • Updated



Thank you for choosing the Ezlo Z-Wave
In-Line Smart Switch

You’ve taken the first step toward making your
home smarter and safer.


We want setting up to be as easy as possible but
if you’re finding yourself in need of help, our
outstanding human customer care is for you
through the following channels:


Toll-free number 866 966 2272
International number 702 487 9770
support@ezlo.com
support.ezlo.com


Features list:
• 1xAC output
• AC output switch on/off by manual or Z-Wave
command
• RGB LED indicates the Z-WAVE network range
• RGB LED indicates the load power
• Z-Wave plus compatible (800 series)
• Power metering
• OTA Firmware upgrade supported





1. Familiarize yourself with Smart Plug 4
1.1 Smart Plug Overview 4
2. Specifications 5
3. Functions of Action Button: 6
4. Pairing the Ezlo Z-Wave Smart Plug
to your Ezlo Z-Wabe Hub
8
  5.1 Manual pairing 8
  5.2 Smart Start pairing 8
  5.3 Z-Wave network unpairing 9
  5.4 Reset Smart Plug to factory default 9
6. Association Commands 10
  6.1 Basic Commands 10
  6.2 Configuration Commands 11
7. FCC NOTICE (for USA) 14



1. Familiarize yourself with your
Smart Plug

1.1 Smart Plug Overview

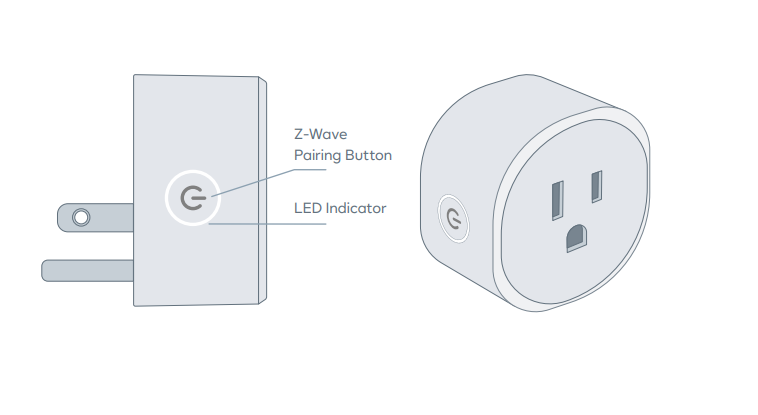

  • Z-Wave Pairing Button
  • LED Indicator



2. Specifications

Power supply:                                                            AC 90-135V, 60Hz

Nominal inpul voltage:                                              120V

Rated current:                                                            10A

Storage temperature:                                                 -4°F–140°F

Operational temperature:                                          14°F–104°F

Radio protocol:                                                           Z-Wave

Z-Wave Radio frequency:                                           US: 908.40MHz, 908.42MHz,
                                                                                   916.00MHz

Z-Wave LR Radio Frequency:                                     912.00 MHz(default channel)
                                                                                   920.00 MHz(back up channel)

Range::                                                                       More than 300 feet outdoors. About 130 feet                                                                                                              Indoors(depending on building materials)

Dimensions:                                                               52mm(L)*52mm(W)*50.5mm(H)



3. Functions of Z-Wave Pairing Button:

Smart Plug is not in the Z-Wave network:

Trigger                                                           Description

Power on                                                        1. LED will blink slow in blue, and enter Smart Start mode.
                                                                       Add for inclusion (Smart Start)



Short Press once                                            1. Change the state of Smart Plug's load.
                                                                       2. LED will blink fast in blue and Smart Plug enter the inclusion mode.



Smart Plug is in the Z-Wave network:

Trigger                                                         Description

While powered ON -> Short                        LED will indicate load status

press once                                                    1. Changing the status of Smart Plug's load.

                                                                     2. LED will blink fast in blue and Smart Plug enter the exclusion mode.



Long press for more than 20                        Reset Smart Plug to factory Default:

seconds                                                         Long press the button for 20 seconds and the blue LED will speed up
                                                                      the flash and finally LED will keep on in blue and Smart Plug will send
                                                                      "Device Reset Locally Notification" to the main controller and exclude
                                                                      from the Z-Wave network. This procedure will reset Smart Plug to
                                                                      factory default



4. Pairing the Ezlo Z-Wave Smart
Plug into your Ezlo Z-Wave Hub



(See chapter 5 for pairing with other Z-Wave compatible hubs)


1. Plug-in the Smart Plug into you desired power
outlet

2. Open the MiOS app and press on “More”

3. Tap on ”Devices” then press on “+” in the top
right corner.

4. Select your Ezlo Z-Wave Hub from the
Controllers list

5. Choose or search for Ezlo Z-Wave Smart Plug
from the list and press “Next”

6. The Ezlo Z-Wave Hub is now waiting for your to
make the Pairing/unpairing procedure from the
Smart Plug side.

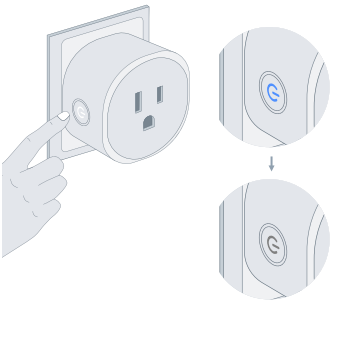

7. Press once on the Z-Wave Pairing button on the
Smart Plug, the LED indicator will be flashing
flashing Blue.

8. The Smart Plug should be recognized and paired
into the Z-Wave network.















5. Pairing the Z-Wave Smart Plug to

other Z-wave compatible hubs.



The Ezlo Smart Plug can be paired and operated in
any Z-WAVE network with other Z-WAVE certified
devices from other manufacturers and /or other
applications.



All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.













5.1 Manual pairing

1. Connect the power supply

2. Set the Z-wave network main controller into

    learning mode

3. Press once the Z-Wave Pairing button, the LED

    indicator will be flashing flash in Blue

4. Smart Plug should be recognized and included

    into the Z-Wave network.



5.2 Smart Start pairing

1. Scan the QR code on your device, and add the

    device DSK to the main controller.

2. Power on Smart Plug.

3. Led will blink slowly in blue, and enter Smart

    Start. If add Smart Plug for pairing is successful.

   the LED will be off. Then Z-Wave PC Controller

   interface will display the corresponding device

   information.



5.3 Z-Wave network unpairing

1. Connect the power supply.

2. Set the Z-Wave network controller into the

    exclusion mode.

3. Click Z-Wave pairing button, LED will blink fast in

    blue, LED will enter Smart Start mode after it is

    removed from Z-Wave network.



5.4 Reset Smart Plug to factory defaults.

Long-press the Z-Wave Pairing button for 20
seconds, and the blue LED will speed up the flash,
and finally LED will stay blue and the Smart Plug
will send "Device Reset Locally Notification" to the
main controller and exclude from the Z-Wave
network. This procedure will reset the Smart Plug
to factory defaults.


Note: If you want your Smart Plug to be a security
device that uses secure/encrypted message to
communicate in a Z-Wave network, then a security
enabled Z-Wave controller is needed.



6. Association Commands

The Smart Plug supports only one association group.



Grouping Identifier:                          Group 1

Max Nodes:                                       0x05

Send Commnads:                              1. Basic Report

                                                           2. Meter Report

                                                           3. Device Reset Locally Notification

6.1 Basic Commands

The Smart Plug offers a wide variety of advanced

configuration settings. Below parameters can be

accessed from main controllers configuration

interface.



6.2 Configuration Commands

The Smart Plug offers a wide variaty of advanced

configuration settings. Below parameters can be

accessed from main controlelrs configuation

interface



Parameter No.20 Overload protection

The Smart Plug keep detecting the load power,

once the AC current exceeds 10.5A for more than

5s, smart plug's relay will turn off.

0 - The function is disabled.

1 - The functioning is enabled.

Default settings: 1

 Parameter size: 1[byte]



Parameter No.21 Setting device status after

power failure

Define how the Plug reacts after the power supply
is back on.
0 - Smart Plug memorizes its state after a power
failure.
1 - Smart Plug does not memorize its state after
a power failure. Connected device will be on after
the power supply is reconnected.
2 - Smart Plug does not memorize its state after
a power failure. Connected device will be off after
the power supply is reconnected.
Default setting: 0
Parameter size: 1[byte]



Parameter No.24 Notification when Load status
change

The Smart Plug can send notifications to
association device (Group Lifeline)when state of
smart plug's load change.
0 - The function is disabled.
1 - Send Basic report.
2 - Send Basic report only when Load condition is
not changed by Z-WAVE Command.
Default setting: 1
Parameter size: 1[byte]

Parameter No.27 Indicator modes

After smart plug being included into a Z-Wave
network,the RGBLED indicator will indicator the
situation of load.
0 - The indicator light remains the same as the load
on/off status.When the load is on,the light is on,and
the off is off.
1 - Within 5 seconds after the operation load,the
indicator light is consistent with the load on/off
status,and then the indicator is off.
Default setting: 0
Parameter size: 1[byte]



Parameter No.151 Threshold of power report

Power threshold to be interpreted,when the
change value of load power exceeds the setting
threshold,the smart plug will send meter report to
association device(Group Lifeline).
Available settings:0-200(0-200W)
0 - The function is disabled.
Default setting: 50(50W)
Parameter size: 2 [byte



Parameter No.152 Percentage threshold of
power report

Power percentage threshold to be interpreted,
when change value of the load power exceeds the
setting threshold,the smart plug will send meter
report to association device(Group Lifeline).
Available settings:0-100(0-100%)
0 - The function is disabled.
Default setting: 10(10%)
Parameter size: 1[byte]



Parameter No.171 Power report frequency

The interval of sending power report to association
device(Group Lifeline).
Available settings:5~2678400(2678400s)
0 - The function is disabled.
Default setting: 3600(3600s)
Parameter size: 4[byte]



Parameter No.172 Energy report frequency

The interval of sending energy report to
association device(Group Lifeline).
Available settings:5~2678400(2678400s)
0 - The function is disabled.
Default setting: 7200(7200s)
Parameter size: 4[byte]



Parameter No.173 Voltage report frequency

The interval of sending voltage report to
association device (Group Lifeline).
Available settings:5~2678400(2678400s)
0 - The function is disabled.
Default setting: 0(disabled)
Parameter size: 4 [byte]

Parameter No.174 Electricity report frequency

The interval of sending electricity report to
association device(Group Lifeline).
Available settings: 5~2678400(2678400s)
0 - The function is disabled.
Default setting: 0(disabled)
Parameter size: 4 [byte]



Parameter No.254 Enable/disable the
configuration command


Lock/unlock all configuration parameters.
0 - Unlock.
1 - Lock.
Default setting: 0
Parameter size: 1[byte]



7. FCC NOTICE (for USA)

This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1)This device may not cause harmful interference
(2)This device must accept any interference received,including interference that may
cause undesired operation.


The manufacturer is not responsible for any radio or tv interference caused by
unauthorized modifications or change to this equipment. Such modifications or change
could void the user's authority to operate the equipment.


This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.These limits are designed to provide
reasonable protection against harmful interference in a residential installation.This
equipment generates,uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However,there is no guarantee that interference will not occur in a
particular installation.f this equipment does cause harmful interference to radio or
television reception,which can be determined by turning the equipment off and on,the
user is encouraged to try to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.


RF warning statement:
The device has been evaluated to meet general RF exposure requirement.The device can
be used in portable exposure condition without restriction.


200 Broadacres Dr, Bloomfield, NJ 07003 866-966-2272 • ezlo.com or support@ezlo.com

Was this article helpful?

0 out of 1 found this helpful

Have more questions? Submit a request

Comments

0 comments

Please sign in to leave a comment.
