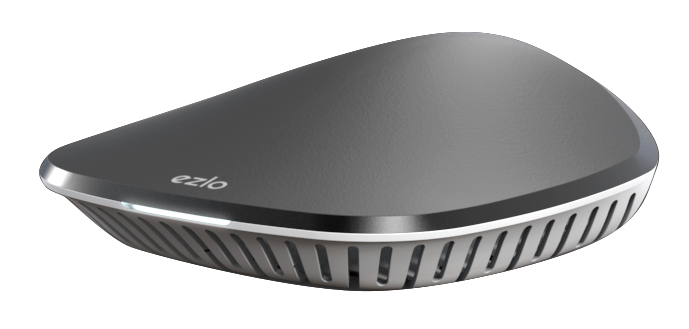

Ezlo Plus Smart Home Hub

Data Sheet

Model Number: E450


Product Description

The Ezlo Plus offers a remarkable blend of functionality and style in an affordable smart home hub package. Featuring support for many Z-Wave, Zigbee or Wi-Fi devices it gives you the power of effortlessly controlling and managing a wide range of smart devices throughout your home, all from one centralized hub.



Key Features

  • Control Wi-Fi, Z-Wave & Zigbee devices, including lights, locks, thermostats, door locks, sensors & more
  • Create MeshBot scenes, including triggers and actions
  • Local control for ultra-fast responsiveness
  • Remote access via iOS, Android and the MiOS portal



Technical specifications

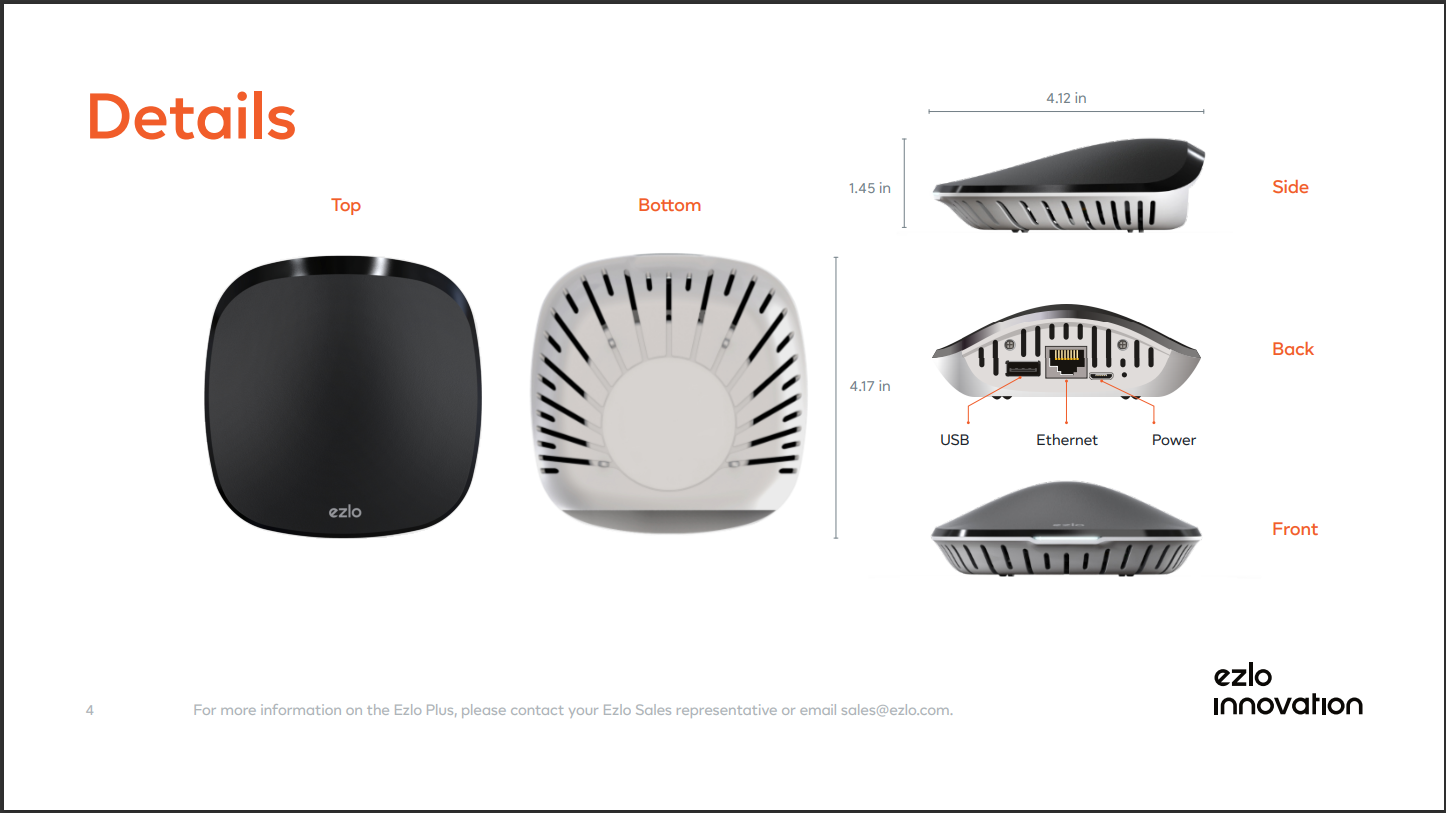

Dimension (LxWxH)

RAM Memory

Z-Wave Module

4.17 x 4.12 x 1.45 in (106 x 104.66 x
36.95 mm)
DDR3 512MB Z-Wave 700 Series Chip

Power Supply

Flash memory

Zigbee Module

Input: AC 100-240VAC, 50-60Hz
Output: DC 5V/2A
Parallel NAND Flash EMMC 4GB Zigbee 3.0 Internal Antenna

CPU

Network

Certification

Quad-Core Cortex-A7 ARM CPU

LAN Port: 10/100 Ethernet port with RJ45 connector



Support Standards: 802.11g/n/ac Dual Band WiFi 2.4 & 5GHz

FCC, UL, CE, RoHS, Z-Wave Plus,
Zigbee, Wi-Fi




AppStore.png Android.png



You can also download the Data Sheet here
